Circuit Diagram - PCM A/T Control System - Seven-position Transmission

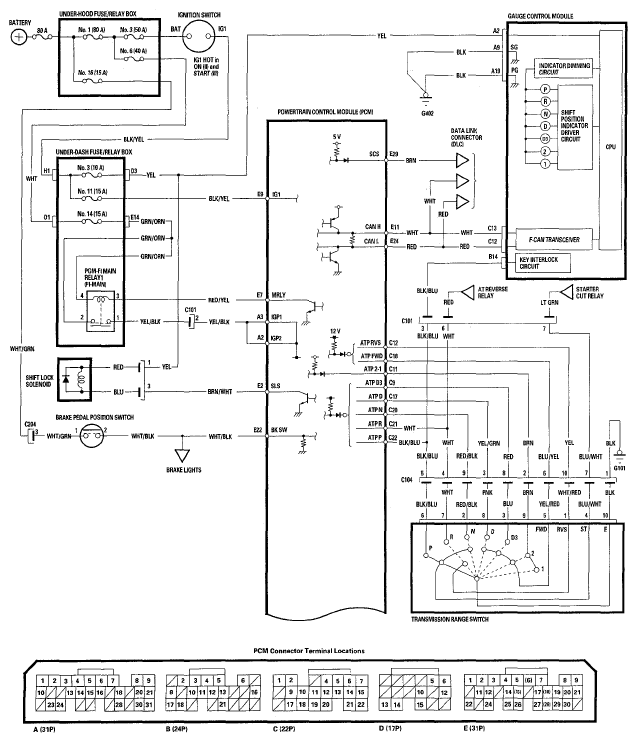

Fig 1: PCM A/T Control System - Seven-Position Transmission - Circuit Diagram (1 Of 2)
G05455174

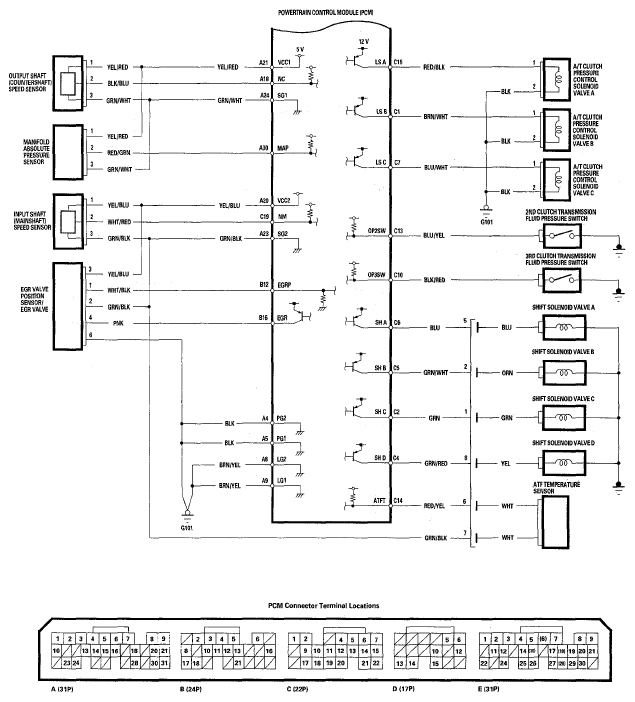

Fig 2: PCM A/T Control System - Seven-Position Transmission - Circuit Diagram (2 Of 2)
G05455175
