Component Location Index

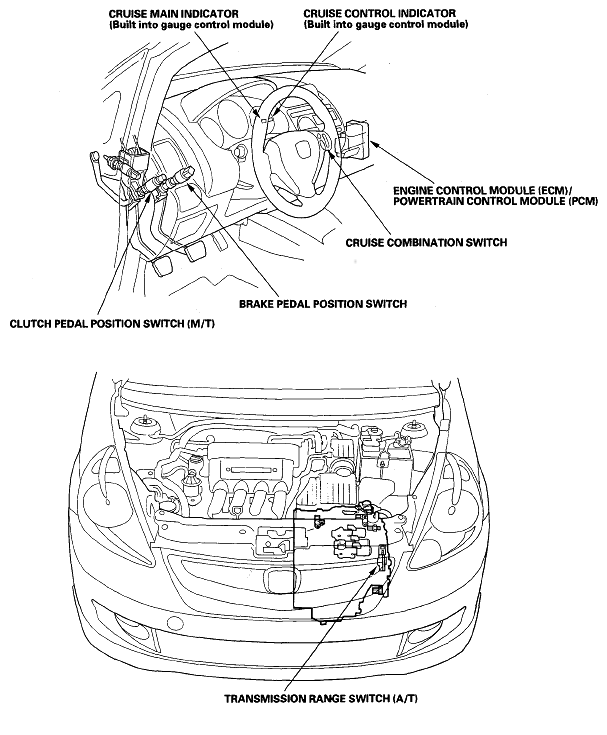

Fig 1: Identifying Cruise Control Component Location
G05454080Courtesy of AMERICAN HONDA MOTOR CO., INC.
