Charging Systems
›
Charging System
›
Component Location Index & Drive Belt Routing
Component Location Index & Drive Belt Routing

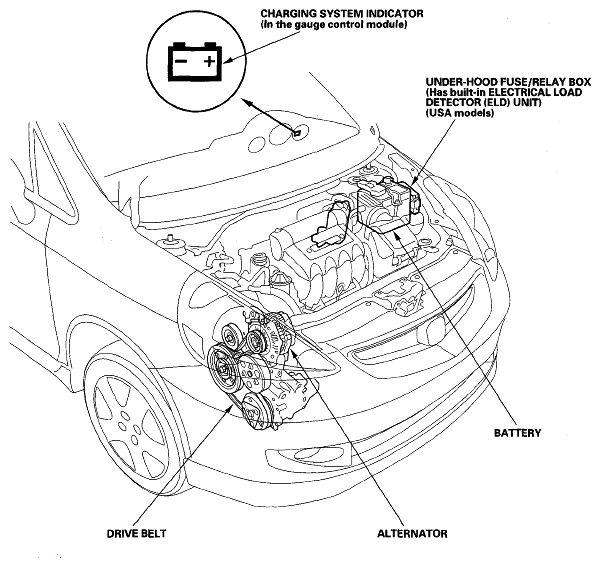

Fig 1: Identifying Charging System Component Location Index & Drive Belt Routing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
