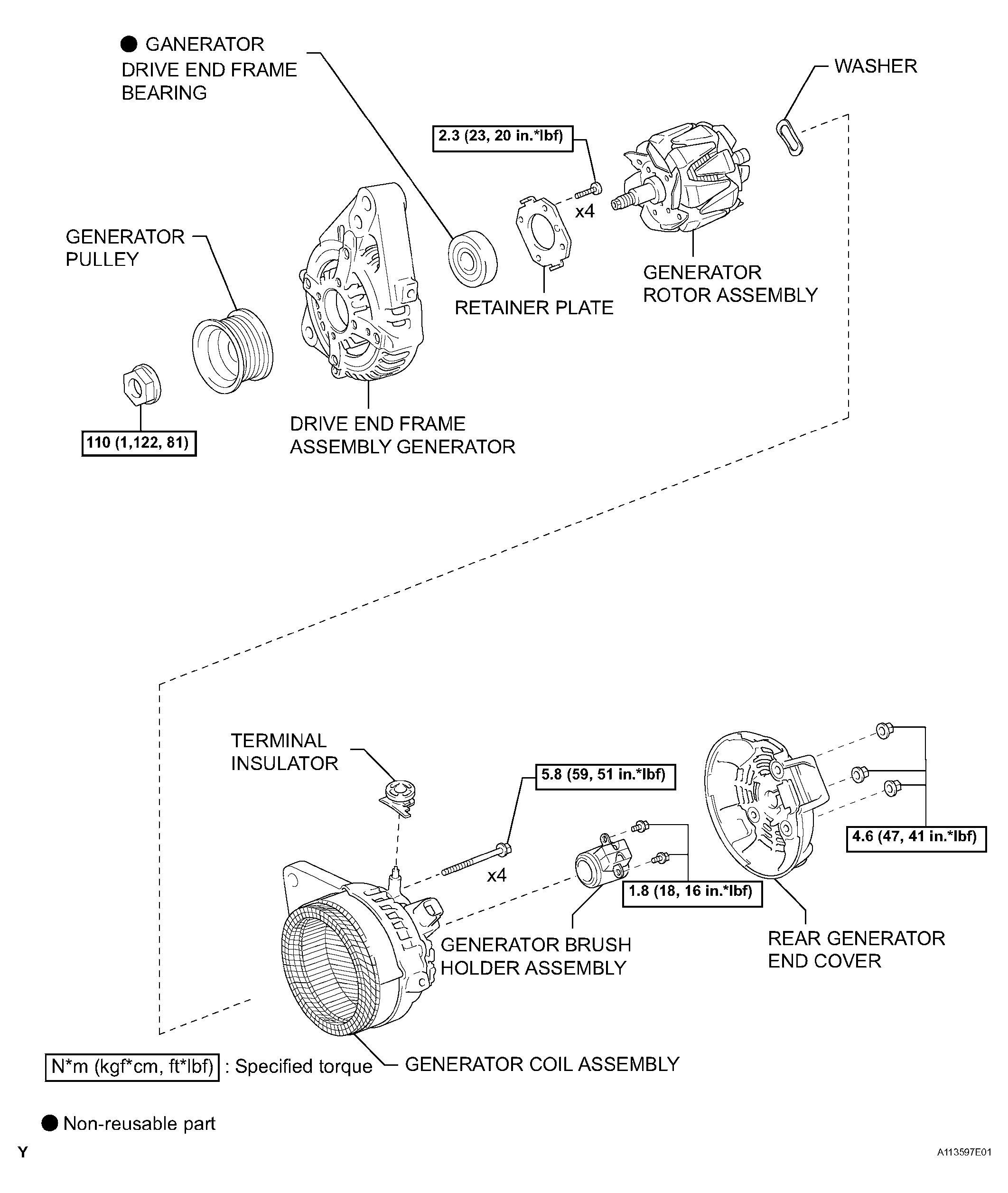

Section 17 (Charging System (1GR-FE)): Generator: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
