Combination Meter: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT FLOOR FOOTREST (See  FRONT FLOOR FOOTREST  )
  3. REMOVE FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See  REMOVAL  )
  4. REMOVE FRONT DOOR SCUFF PLATE LH (for Access Cab) (See  REMOVAL  )
  5. REMOVE FRONT DOOR SCUFF PLATE LH (for Double Cab) (See  REMOVAL  )
  6. REMOVE COWL SIDE TRIM BOARD LH (for Regular Cab) (See  REMOVAL  )
  7. REMOVE COWL SIDE TRIM BOARD LH (for Access Cab) (See  REMOVAL  )
  8. REMOVE COWL SIDE TRIM BOARD LH (for Double Cab) (See  REMOVAL  )
  9. REMOVE INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See  REMOVAL  )
  10. REMOVE INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See  REMOVAL  )
  11. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  DISASSEMBLY  )
  12. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (See  REMOVAL  )
  13. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  14. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 4 screws and the combination meter assembly.
    2. Disconnect the 2 connectors.

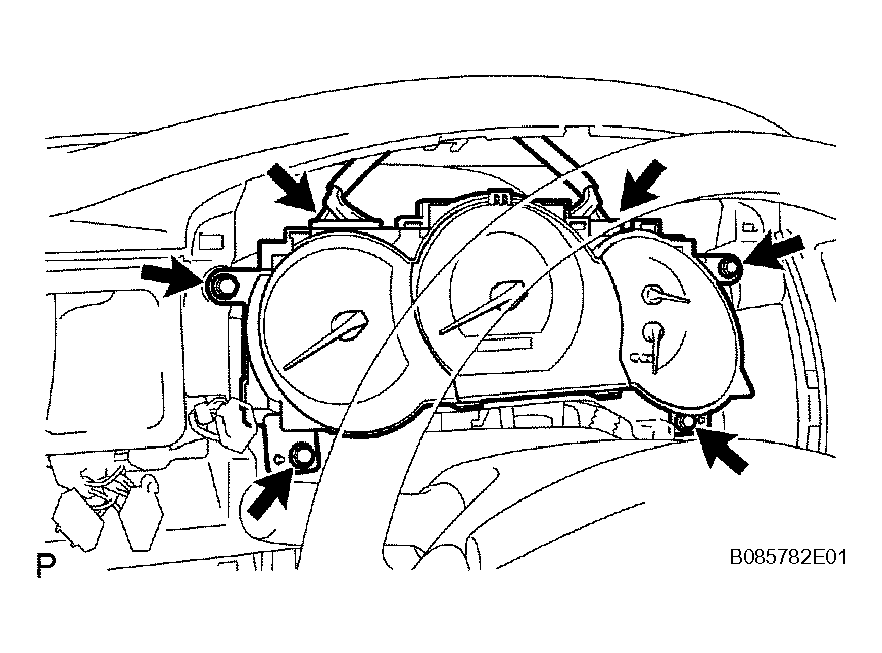

      Fig 1: Removing Combination Meter Assembly Screws
      G04412686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
