Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (DRIVER SIDE JUNCTION BLOCK - BODY GROUND)
    1. Disconnect the 1K driver side J/B connector.
    2. Measure the resistance.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Connection Specified Condition
      1K-10 (KSW) - Body ground No key in ignition key cylinder 10 k or higher
      1K-10 (KSW) - Body ground Key inserted in ignition key cylinder Below 1
    3. Reconnect the driver side J/B connector.

    OK: Go to step   4

    Fig 1: Disconnecting 1K Driver Side J/B Connector
    G04412590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to Next Step

  2. INSPECT UNLOCK WARNING SWITCH ASSEMBLY
    1. Remove the unlock warning switch.
    2. Measure the resistance.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Connection Specified Condition
      1 - 2 Not pushed 10 k or higher
      1 - 2 Pushed Below 1
    3. Reinstall the unlock warning switch.

    NG: REPLACE UNLOCK WARNING SWITCH ASSEMBLY

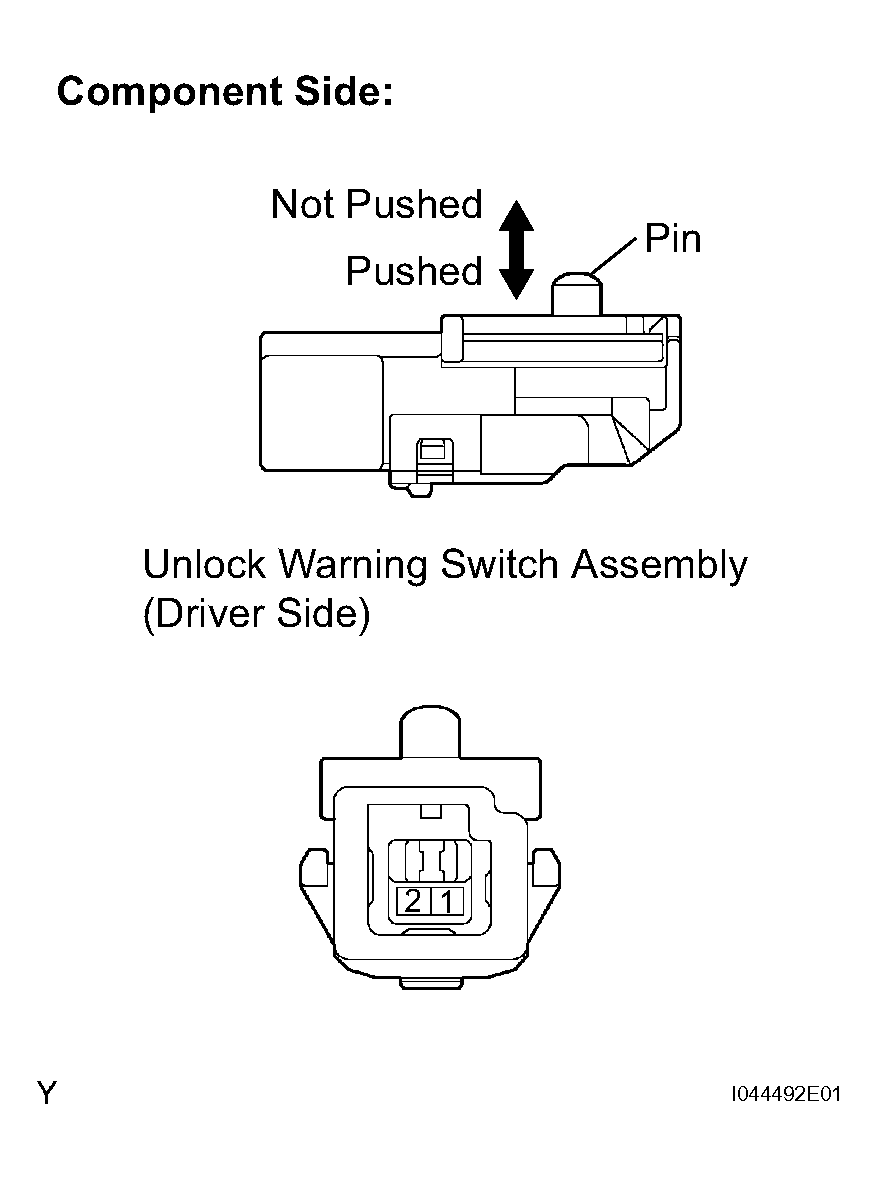

    Fig 2: Removing Unlock Warning Switch
    G04412591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (SWITCH ASSEMBLY - DRIVER SIDE J/B ASSEMBLY AND BODY GROUND)
    1. Disconnect the U1 unlock warning switch connector.
    2. Disconnect the 1K driver side J/B connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      U1-1 - 1K-10 (KSW) Below 1
      U1-2 - Body ground Below 1
    4. Reconnect the unlock warning switch connector.
    5. Reconnect the driver side J/B connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

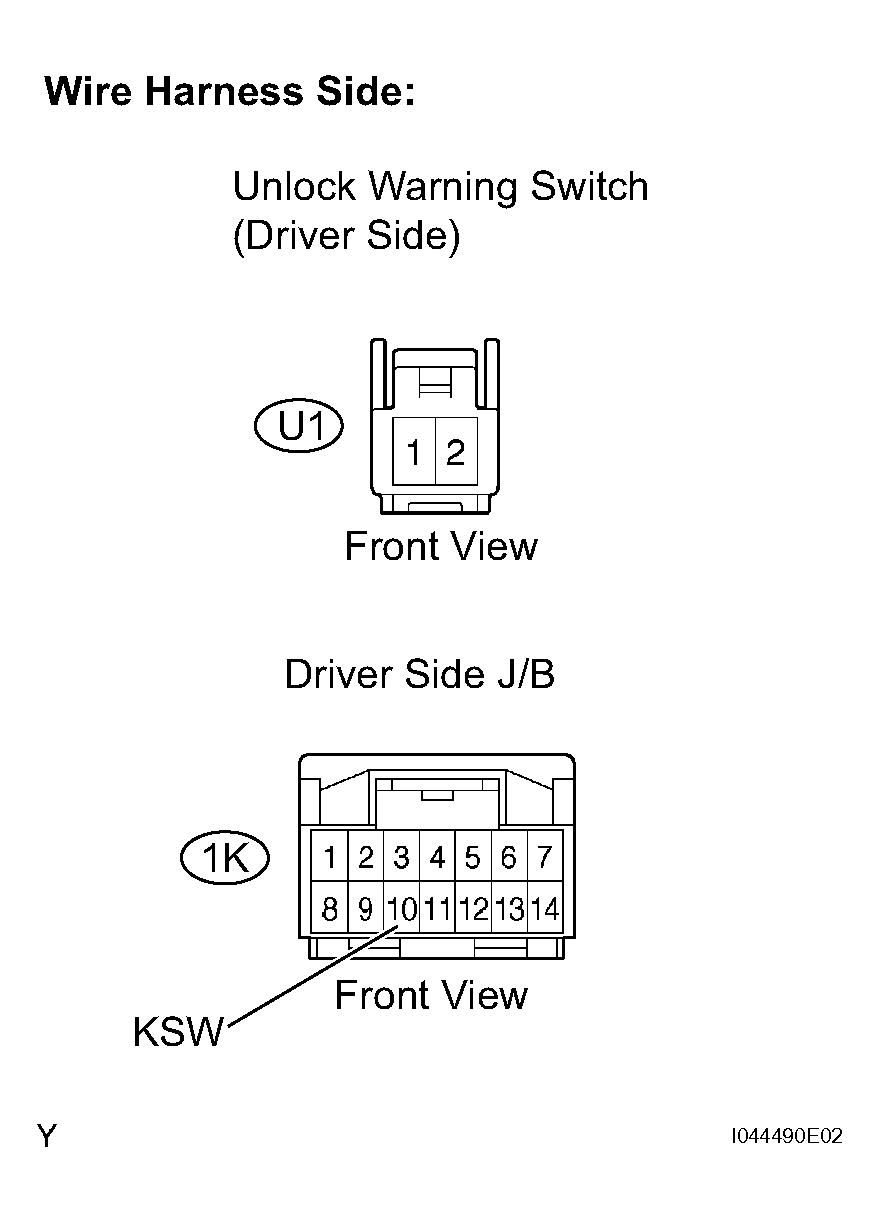

    Fig 3: Disconnecting U1 Unlock Warning Switch Connector
    G04412592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  4. CHECK FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (DRIVER SIDE)
    1. Move the room light switch to the DOOR position and open the driver side door. Check that the room light turns ON.

      OK: Room light turns ON.

    OK: REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

    NG: Go to Next Step

  5. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (DRIVER SIDE)
    1. Remove the front door courtesy light switch assembly.
    2. Measure the resistance of the switch.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      1 - Body ground Not pushed (ON) Below 1
      1 - Body ground Pushed (OFF) 10 k or higher
    3. Reinstall the front door courtesy light switch assembly.
      Fig 4: Removing Front Door Courtesy Light Switch Assembly (Driver Side)
      G04412593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (SWITCH ASSEMBLY (DRIVER SIDE) - DRIVER SIDE J/B ASSEMBLY)
    1. Disconnect the D11 front door courtesy light switch connector.
    2. Disconnect the 1F driver side J/B connector.
    3. Measure the resistance.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D11-1 - 1F-7 (DCTY) Below 1
    4. Reconnect the front door courtesy light switch connector.
    5. Reconnect the driver side J/B connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

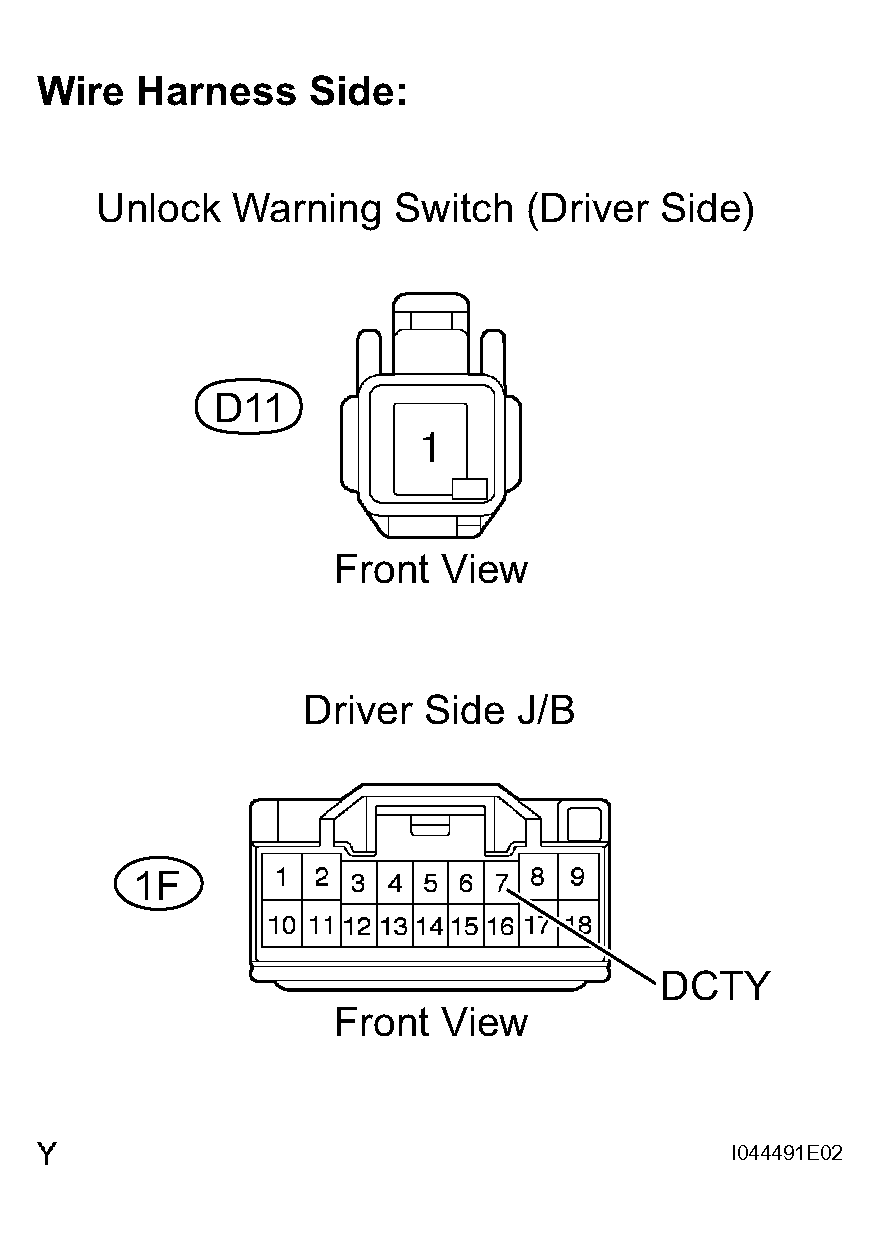

    Fig 5: Disconnecting 1F Driver Side J/B Connector
    G04412594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE DRIVER SIDE JUNCTION BLOCK
