Air Conditioning Control Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

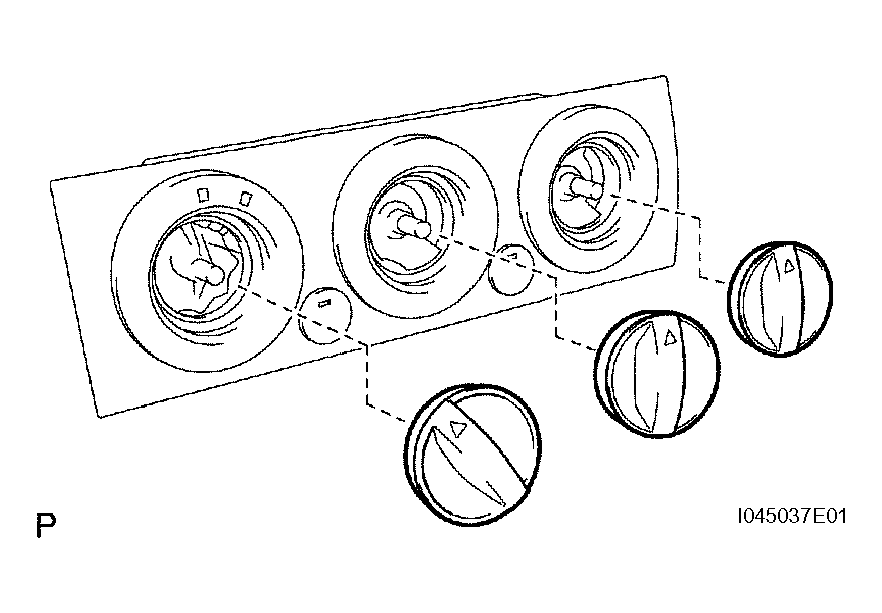

REMOVE CONTROL KNOB SUB-ASSEMBLY
1. Remove the 3 control knob sub-assemblies.

  Fig 1: Removing Control Knob Sub-Assemblies
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

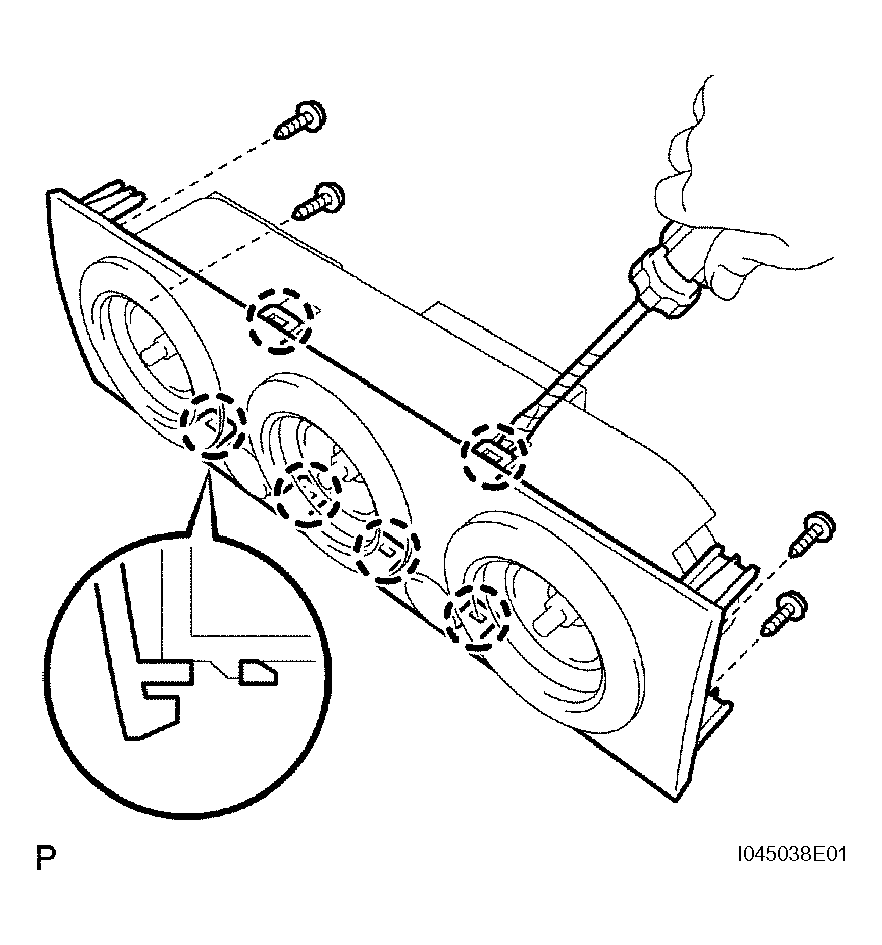

REMOVE HEATER CONTROL PANEL
1. Remove the 4 screws.
2. Using a screwdriver, disengage the 6 claws and remove the heater control panel.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 2: Removing Heater Control Panel & Disengaging Claws Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

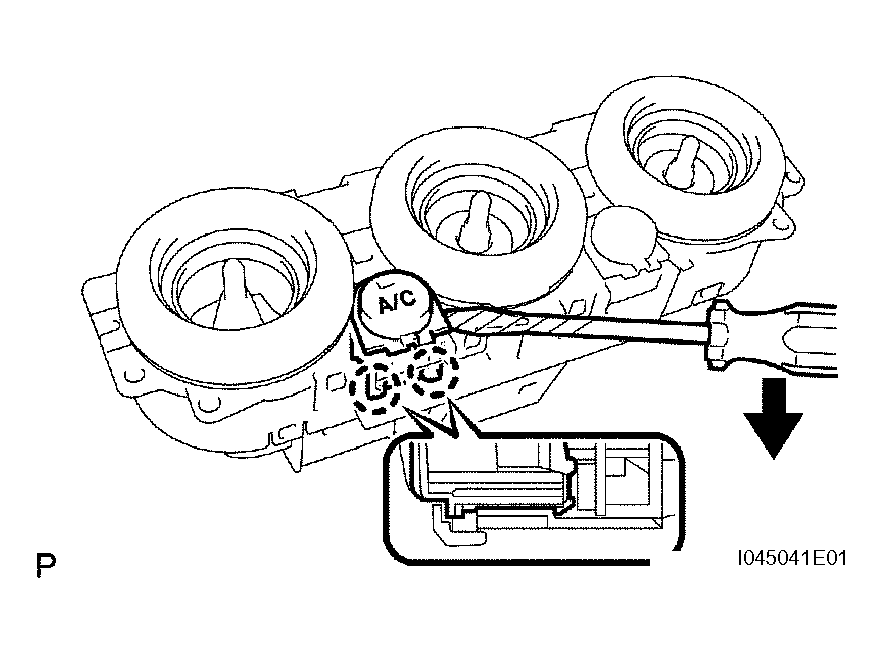

REMOVE A/C SWITCH
1. Using a screwdriver, pry out the A/C switch.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 3: Prying Out A/C Switch Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

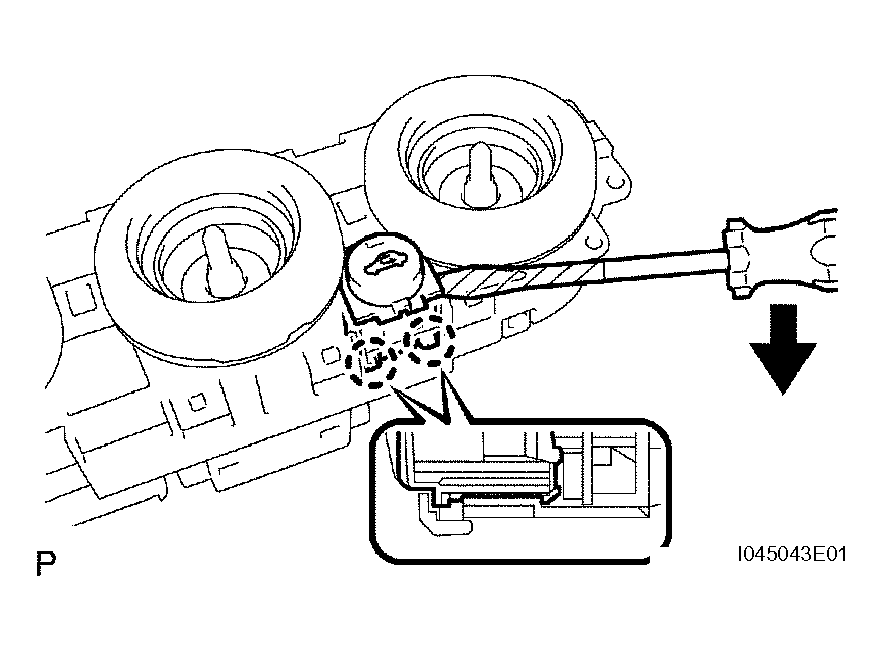

REMOVE REC SWITCH
1. Using a screwdriver, pry out the REC switch.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 4: Prying Out REC Switch Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BULB
1. Using a screwdriver, turn the 2 bulbs counterclockwise and pull them out.

  Fig 5: Removing Bulbs Counterclockwise Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
