Air Conditioning Control Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BULB
1. Using a screwdriver, turn the 2 bulbs clockwise to install them.

  Fig 1: Installing Bulbs Clockwise Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

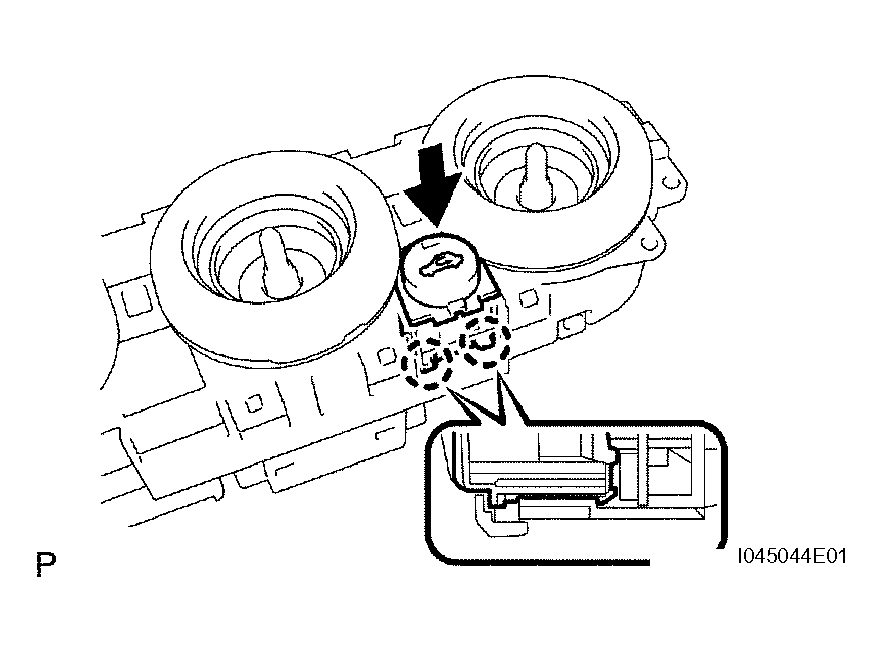

INSTALL REC SWITCH
1. Engage the 2 claws and install the REC switch.

  Fig 2: Installing REC Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

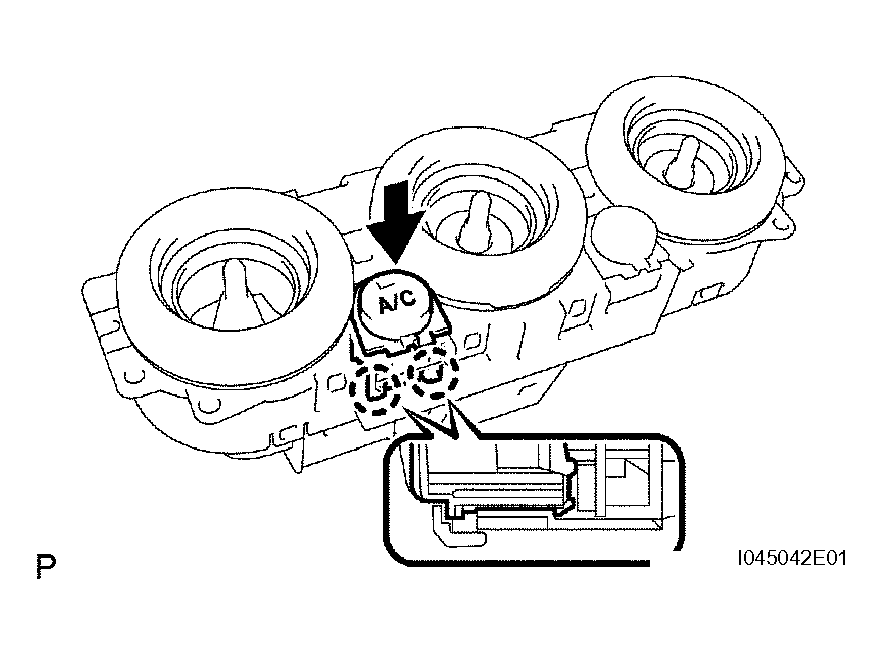

INSTALL A/C SWITCH
1. Engage the 2 claws and install the A/C switch.

  Fig 3: Installing A/C Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

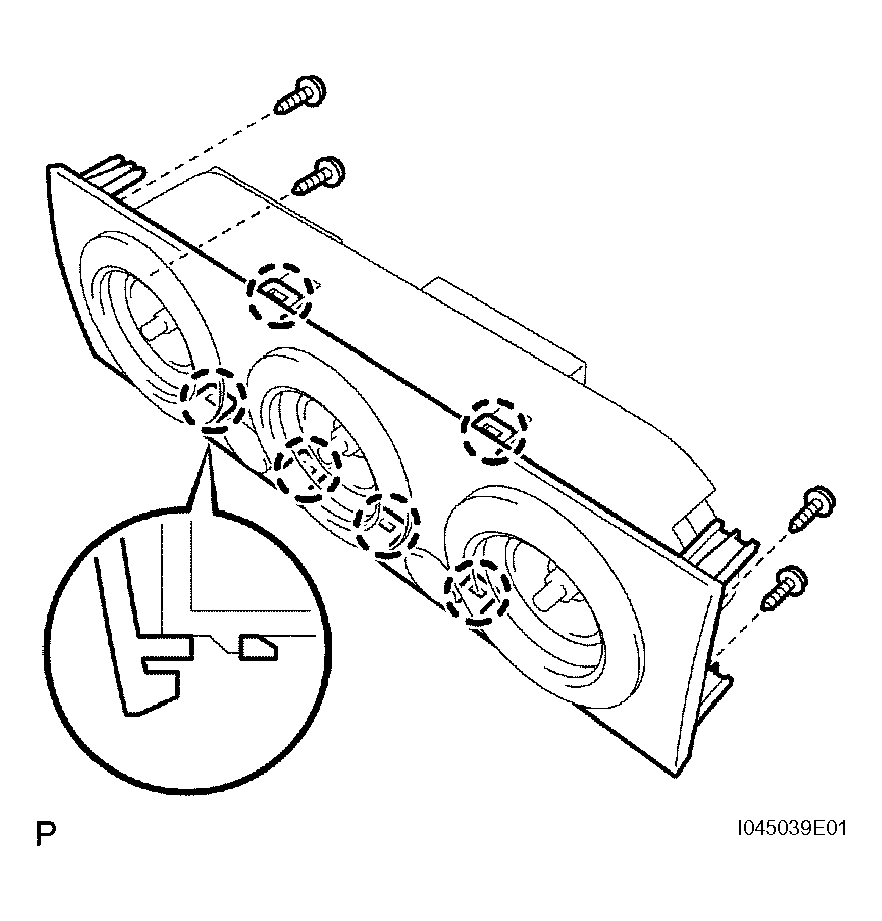

INSTALL HEATER CONTROL PANEL
1. Engage the 6 claws and install the heater control panel.
2. Install the 4 screws.

  Fig 4: Installing Heater Control Panel With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

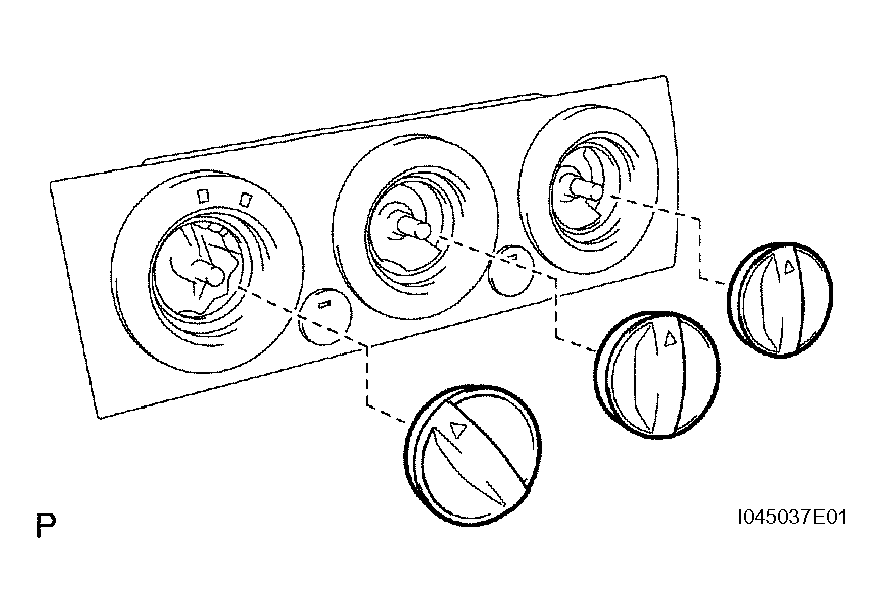

INSTALL CONTROL KNOB SUB-ASSEMBLY
1. Install the 3 control knob sub-assemblies.

  Fig 5: Installing Control Knob Sub-Assemblies
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
