Component Location Index

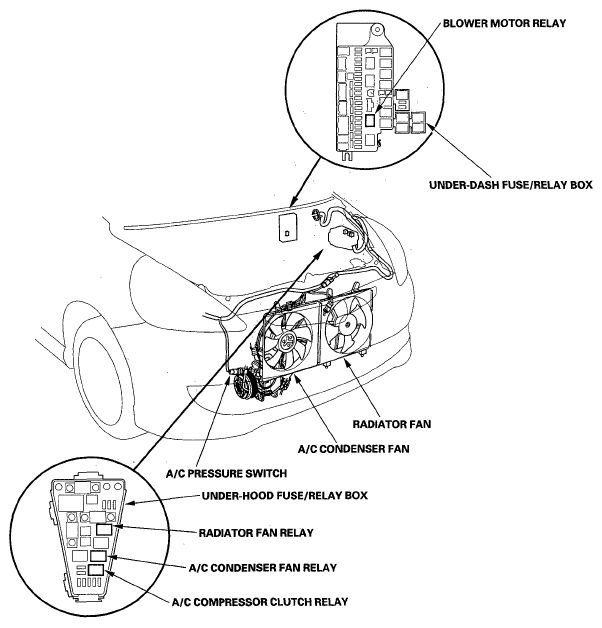

Fig 1: Identifying Heating/Air Conditioning Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

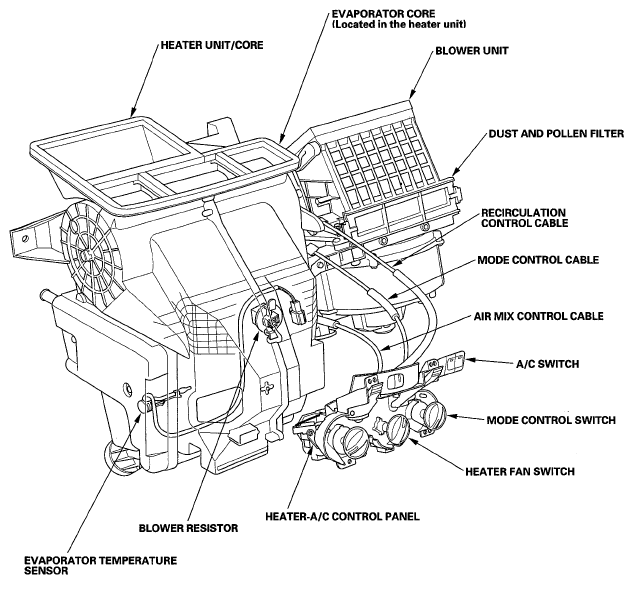

Fig 2: Identifying Heating/Air Conditioning Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

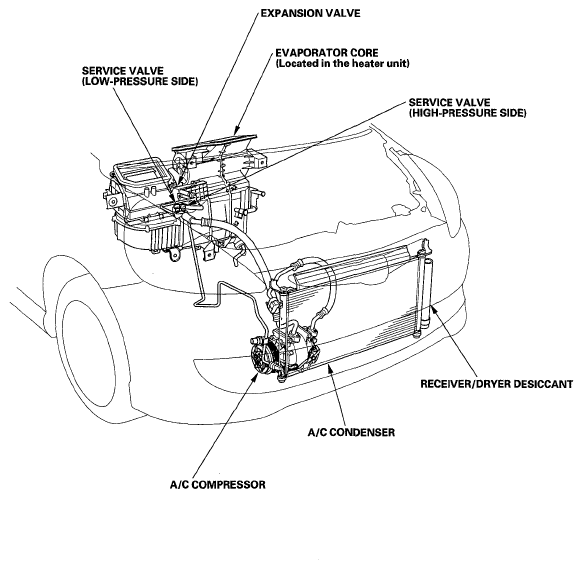

Fig 3: Identifying Heating/Air Conditioning Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
