ECM/PCM (M/T) Connector End View
ECM/PCM (M/T) Connector End View

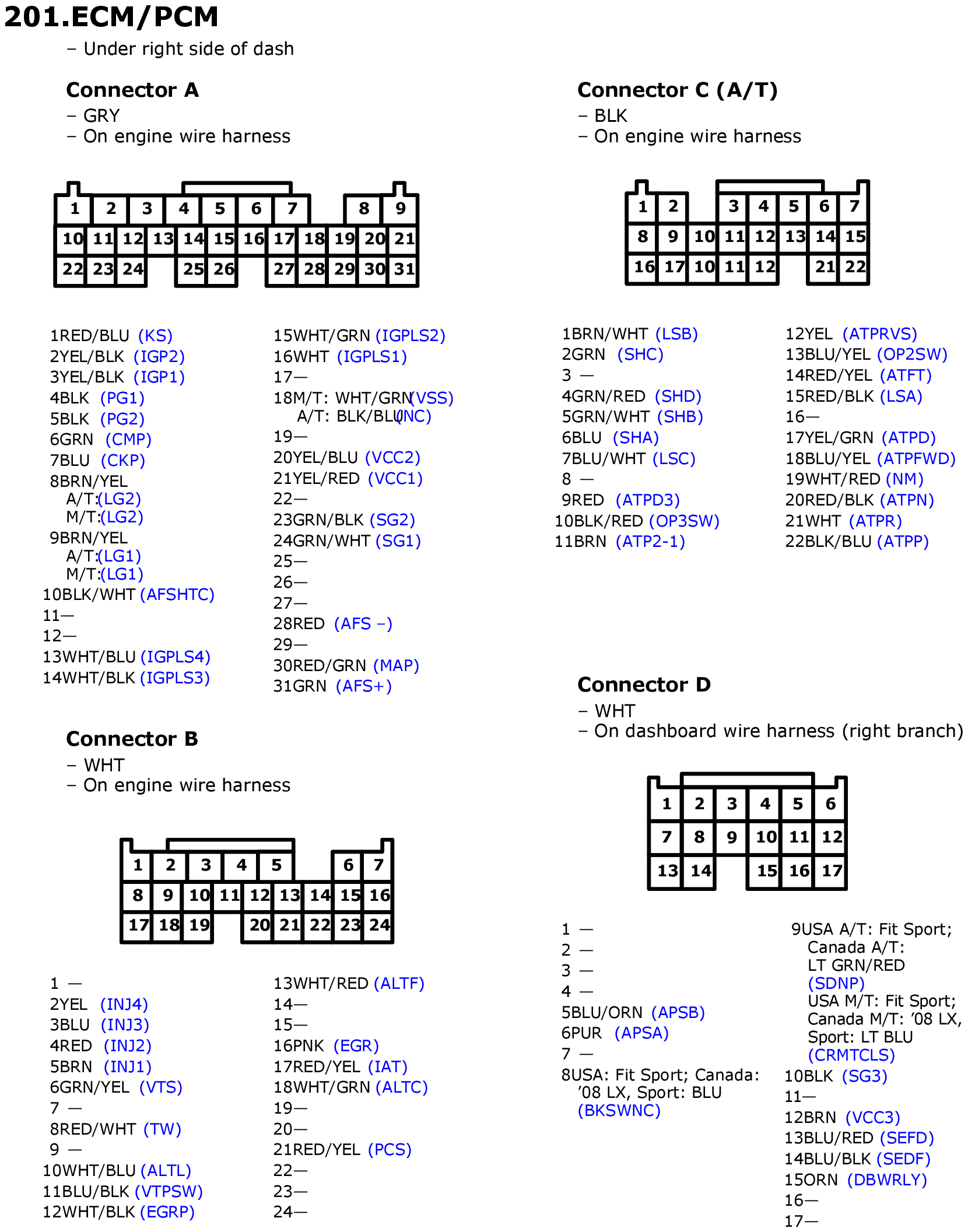

Fig 1: ECM/PCM (M/T) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
