Ignition Switch Connector End View
Ignition Switch Connector End View

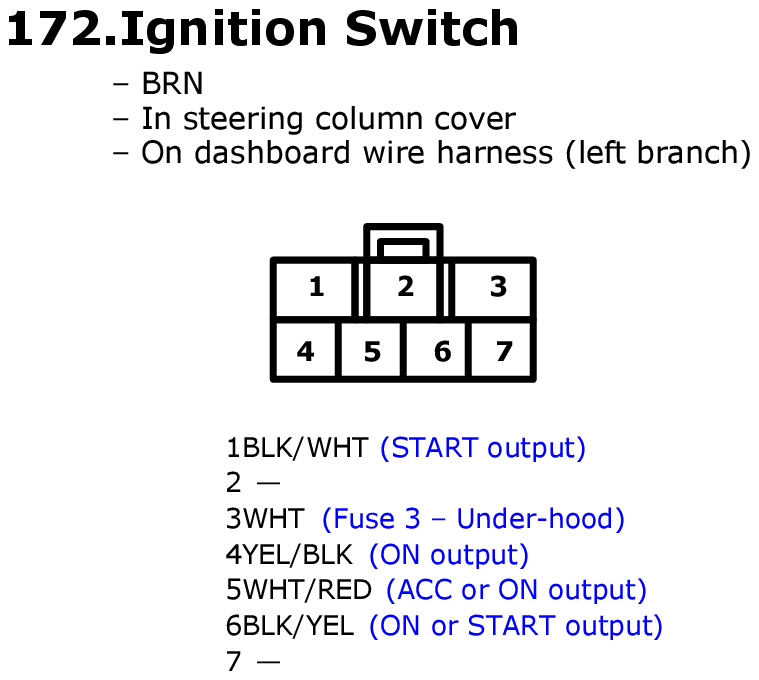

Fig 1: Ignition Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
