ODS Unit Connector End View
ODS Unit Connector End View

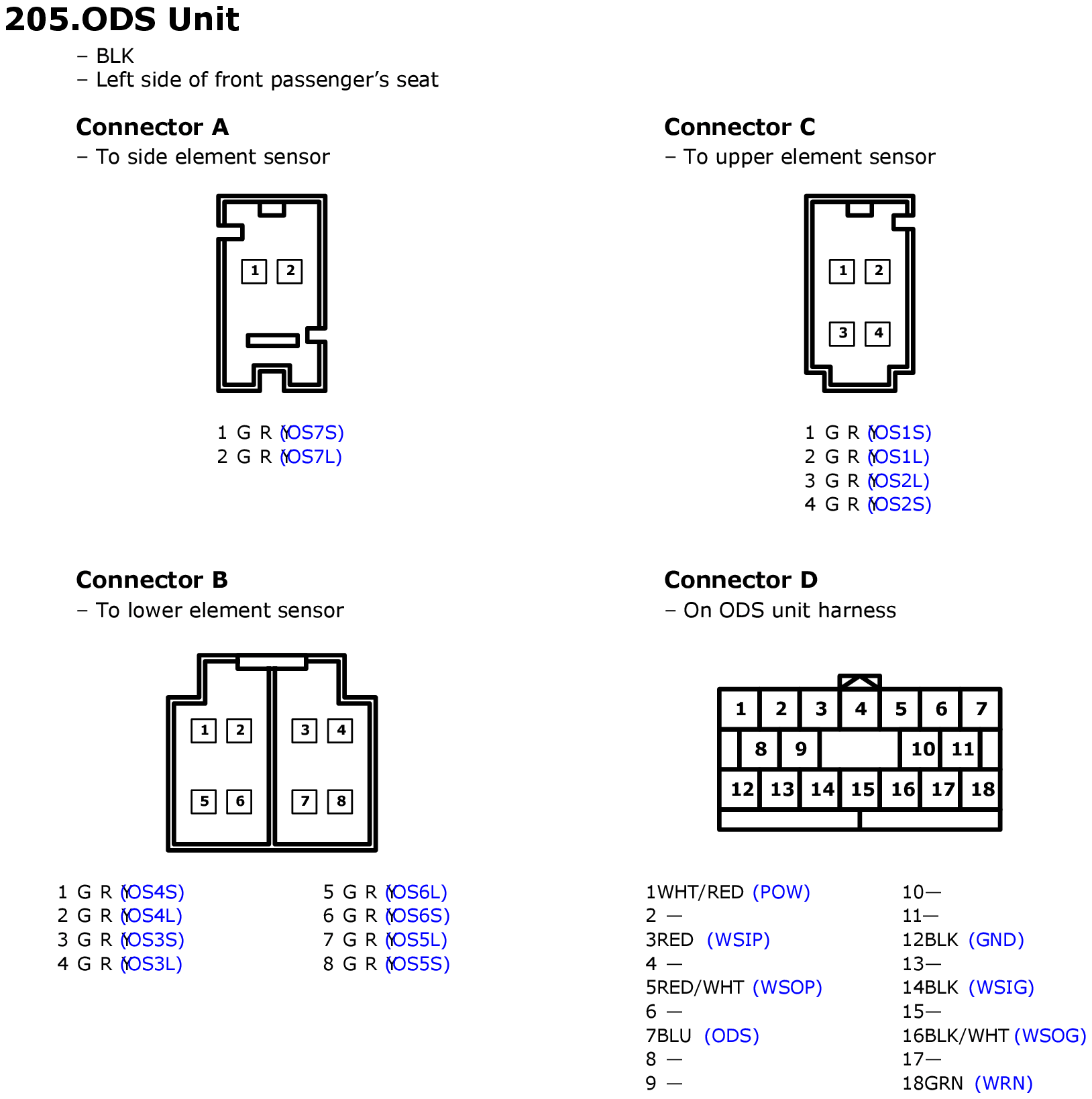

Fig 1: ODS Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
