Secondary HO2S Connector End View
Secondary HO2S Connector End View

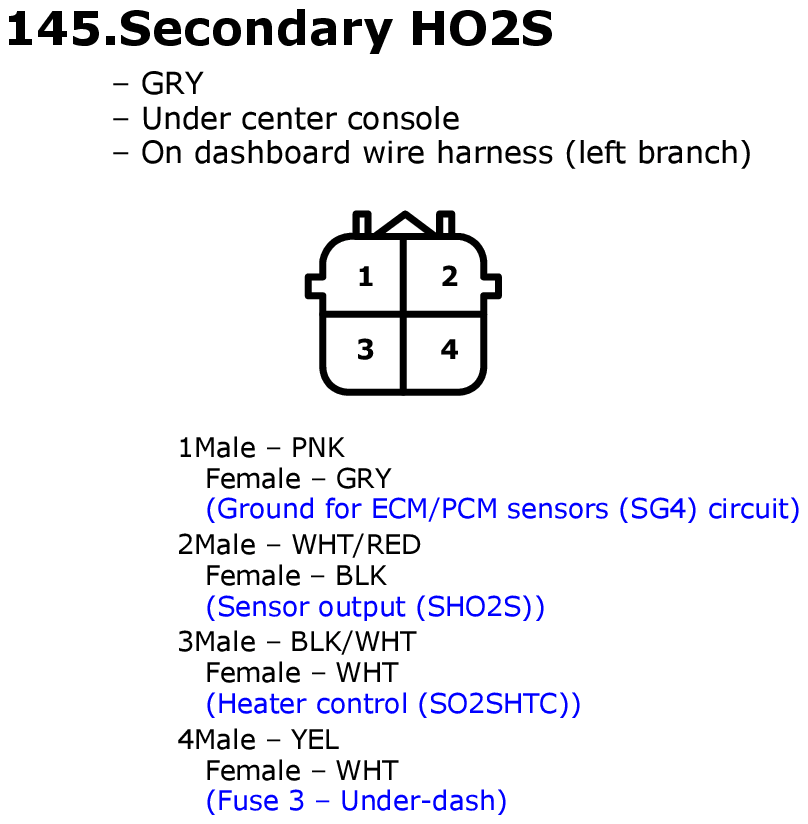

Fig 1: Secondary HO2S Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
