Relays And Control Unit Locations
›
Seat
Relays And Control Unit Locations: Seat

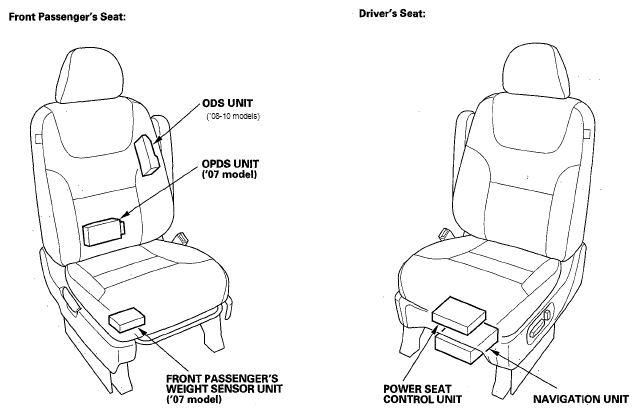

Fig 1: Identifying Seat Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
