Circuit Diagram - PGM A/T Control System

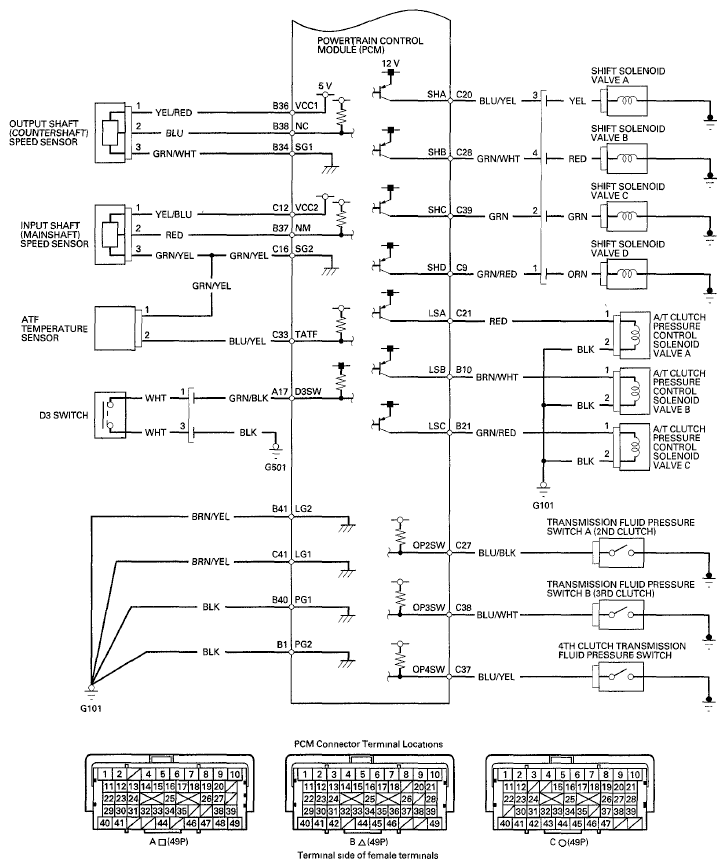

Fig 1: PGM A/T Control System - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

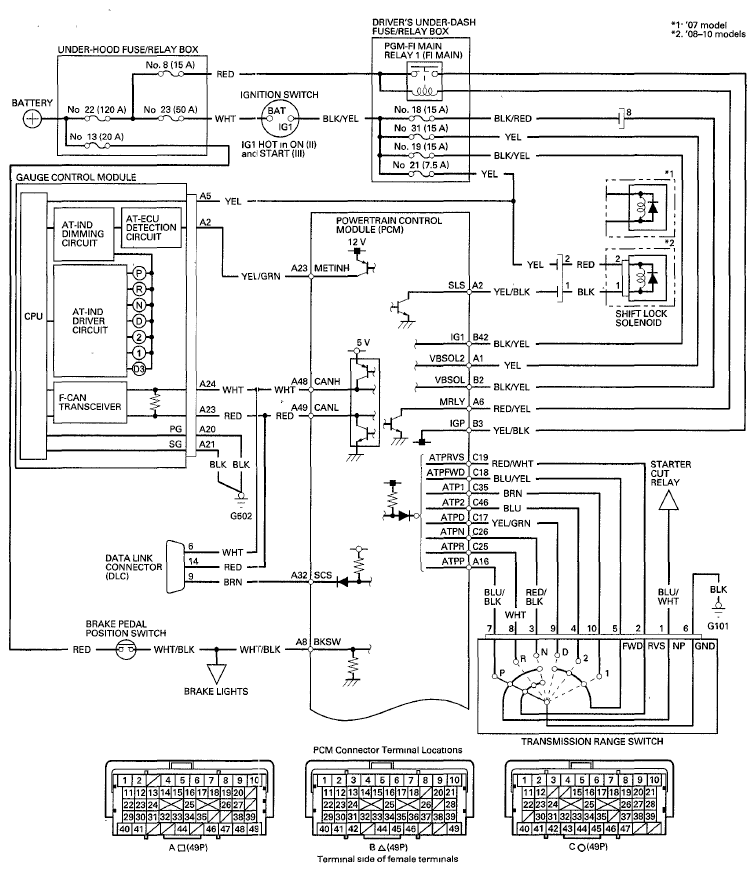

Fig 2: PGM A/T Control System - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
