Navigation Display Removal/Installation

Remove the climate control panel CLIMATE CONTROL PANEL REMOVAL/INSTALLATION ).
Remove the three bolts (A) and disconnect the four connectors (B), and then remove the navigation display (C) with the audio disc changer (D).

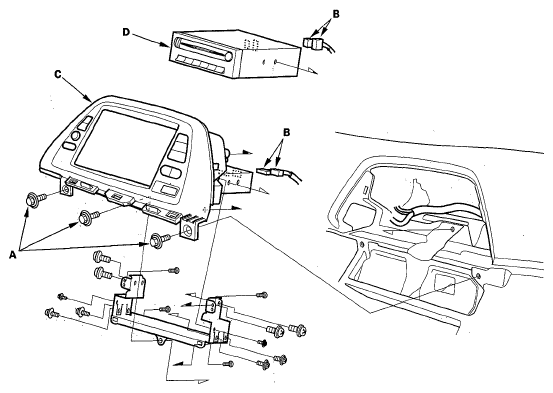

Fig 1: Identifying Navigation Display With Audio Disc Changer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the navigation display and the audio disc changer from the bracket.
Install in the reverse order of removal.
