Component Location Index

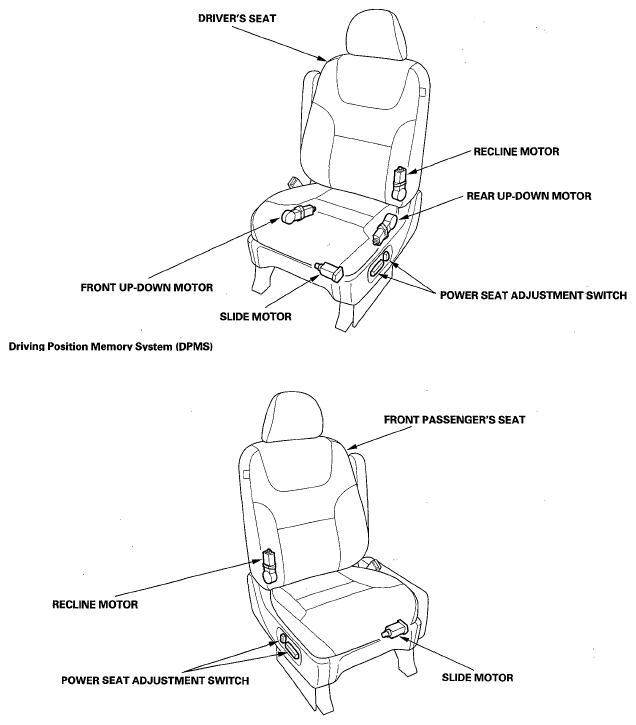

Fig 1: Identifying Power Seats Component Location
G05526838Courtesy of AMERICAN HONDA MOTOR CO., INC.
