Pressure Reducing Mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, front outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

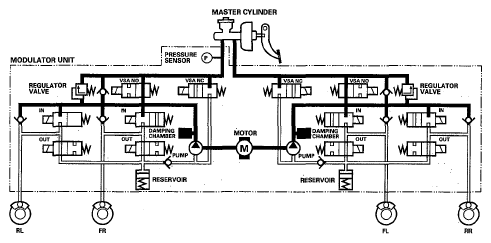

Fig 1: Pressure Reducing Mode - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
