Wheel Speed Sensor Replacement: Front
- Turn the ignition switch to LOCK (0).

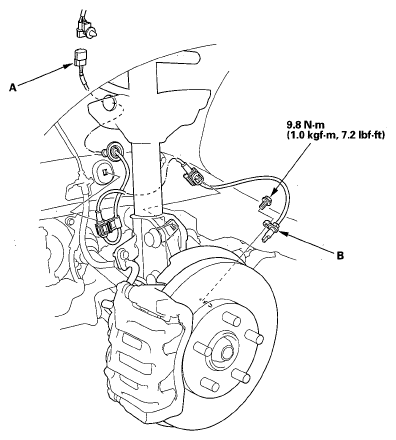

- Disconnect the wheel speed sensor connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the clips, the bolt, and the wheel speed sensor (B).
- Install the wheel speed sensor in the reverse order of removal, and note these items:
- Install the sensor carefully to avoid twisting the wires.
- If the wheel speed sensor comes in contact with the wheel bearing, check for a faulty wheel bearing, wheel speed sensor, or knuckle.
- Start the engine, and check that the ABS and VSA indicators go off.
- Test-drive the vehicle, and check that the ABS and VSA indicators do not come on.
