APP Sensor Connector End View
APP Sensor Connector End View

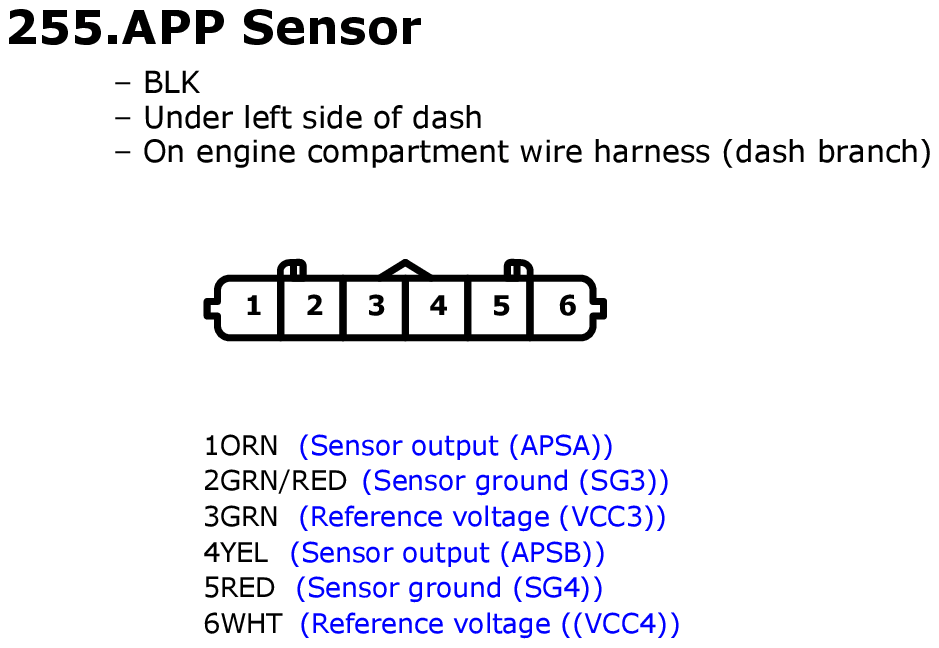

Fig 1: APP Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

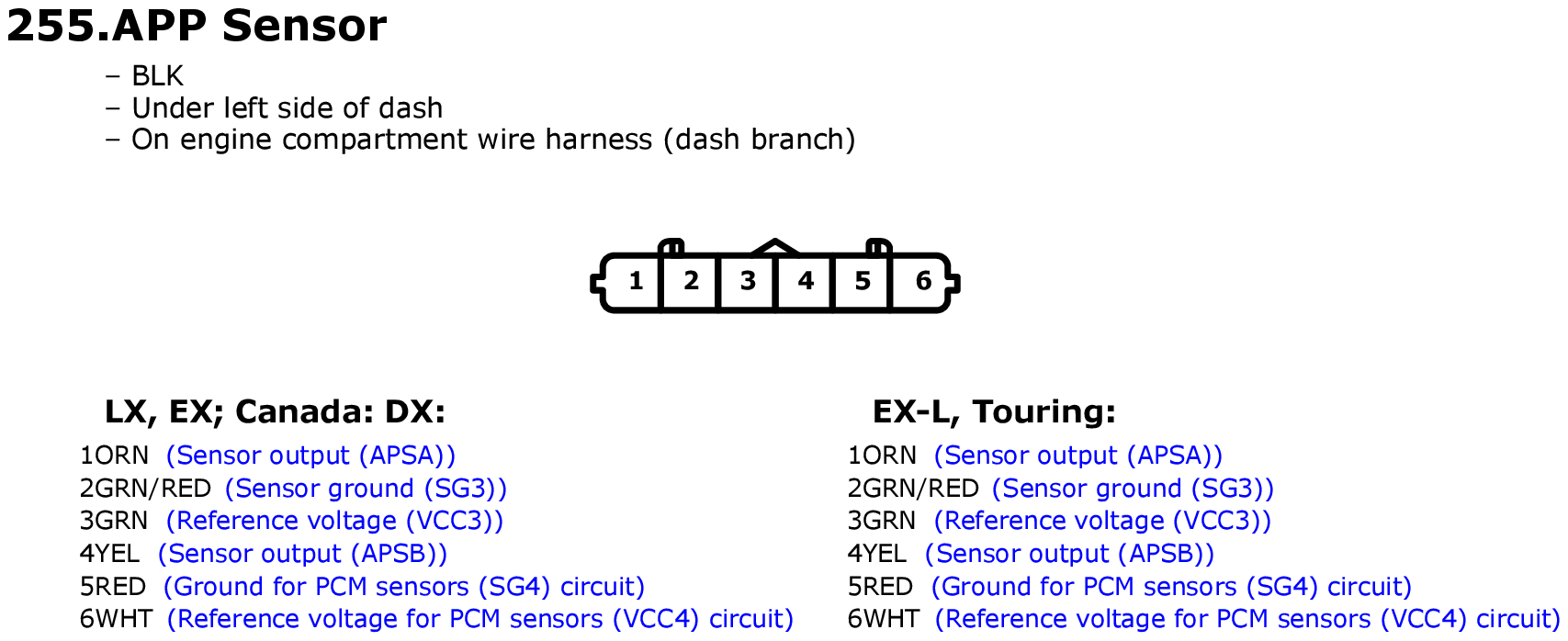

Fig 1: APP Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
