ATF Temperature Sensor Connector End View
ATF Temperature Sensor Connector End View

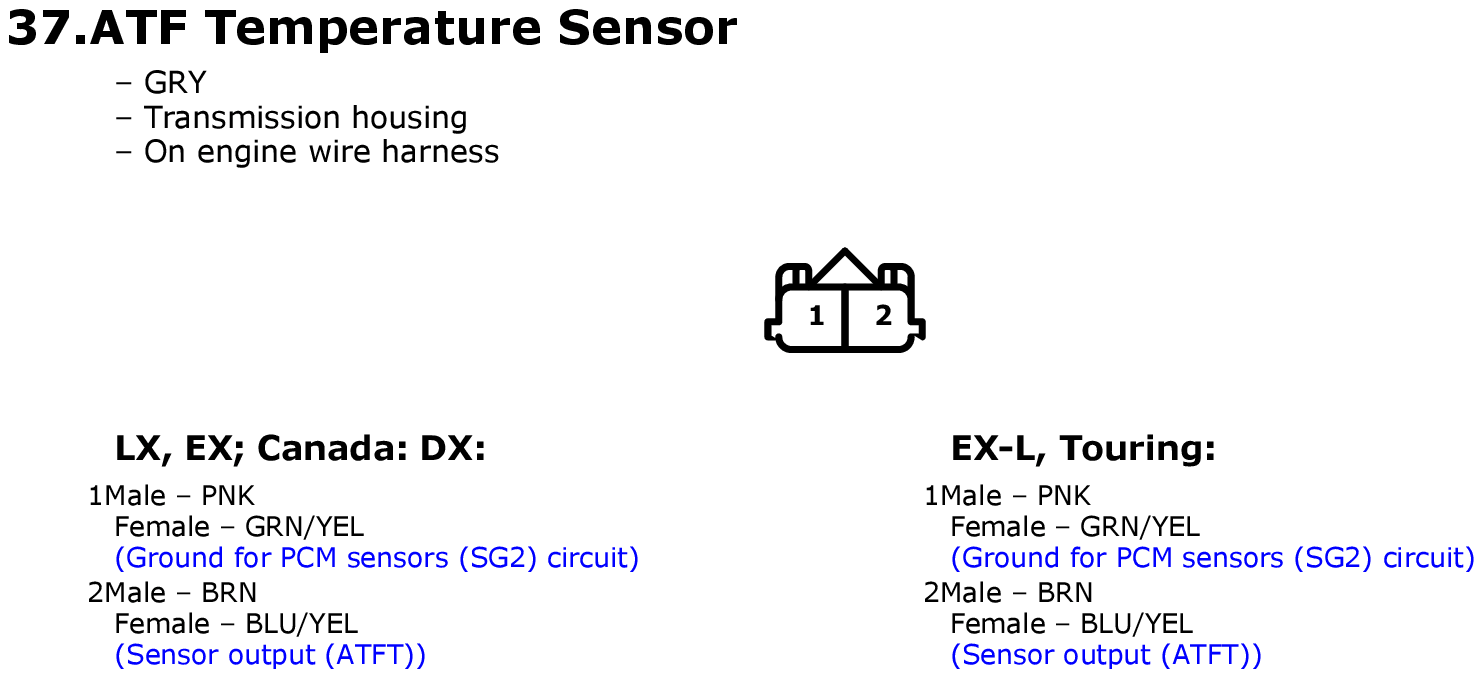

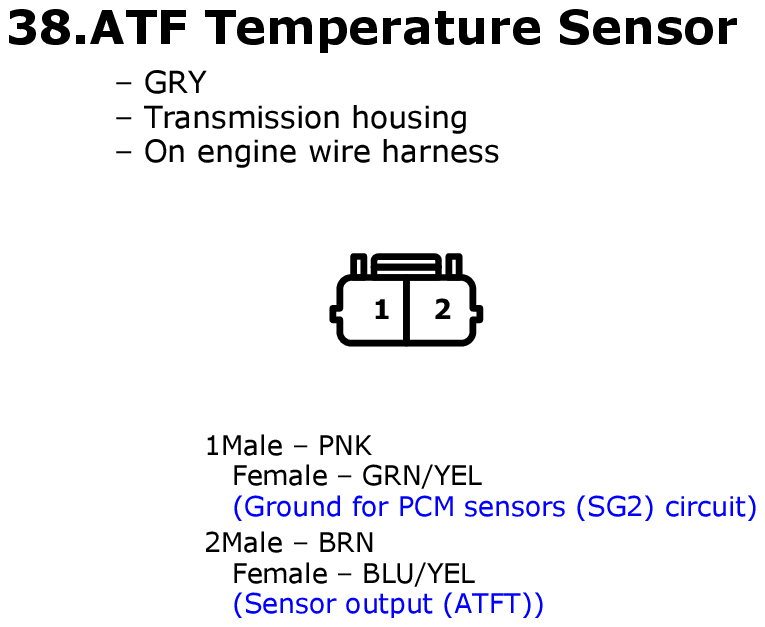

Fig 1: ATF Temperature Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: ATF Temperature Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
