TPMS Control Unit Connector End View
TPMS Control Unit Connector End View

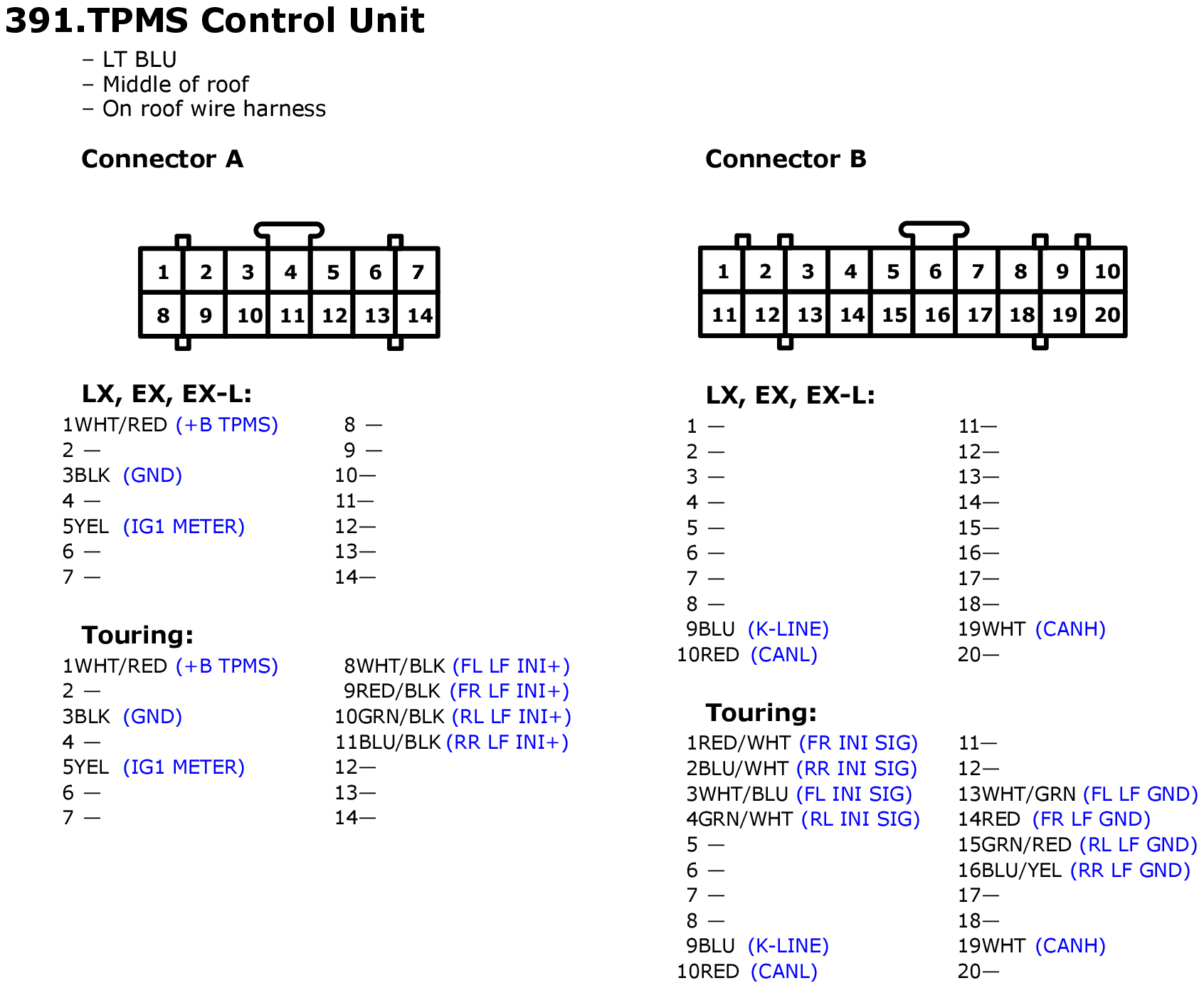

Fig 1: TPMS Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
