Horn Switch Test
- Remove the driver's airbag assembly (see
DRIVER'S AIRBAG REPLACEMENT
), and disconnect the horn switch 1P positive terminal from the cable reel (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the cable reel side "IP connector (B) to body ground.
- If the horns sound, replace the horn plate.
- If the horns do not sound, go to step 3.
- Remove the steering column covers (see
STEERING COLUMN REMOVAL AND INSTALLATION
).

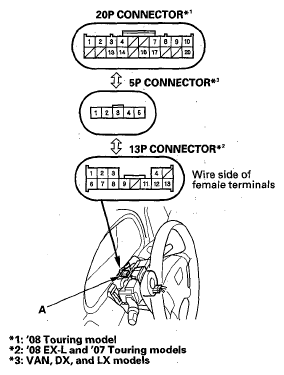

- Disconnect the dashboard wire harness 20P*1
(13P*2
or 5P*3
) connector (A) from the cable reel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the No. 11*1
(No. 1 *2, *3
) terminal of the dashboard wire harness 20P*1
(13P*2
or 5P*3
) connector to body ground.
- If the horns sound, replace the cable reel (see
CABLE REEL REPLACEMENT
).
- If the horns don't sound, check these items:
- No. 13 (20 A) fuse in the under-hood fuse/relay box.
- Relay control module in the under-hood fuse/relay box.
- Horns (see
HORN TEST/REPLACEMENT ).
- An open in the wire.
