Intake Manifold Removal and Installation
›
Exploded View
›
J35A6 engine
J35A6 engine

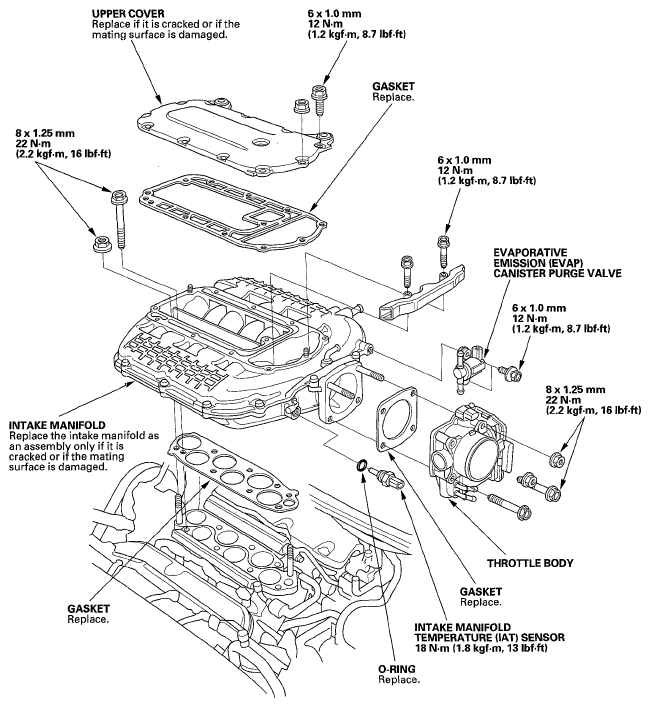

Fig 1: Exploded View Of Intake Manifold And Exhaust System - J35A6 Engine With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
