FixVault
Home
›
Honda
›
2007
›
Odyssey EX
›
Repair and Diagnosis
›
Engine Mechanical
›
Lubrication System
›
Engine Lubrication System
›
Component Location Index
›
'07 model J35A7 engine
'07 model J35A7 engine

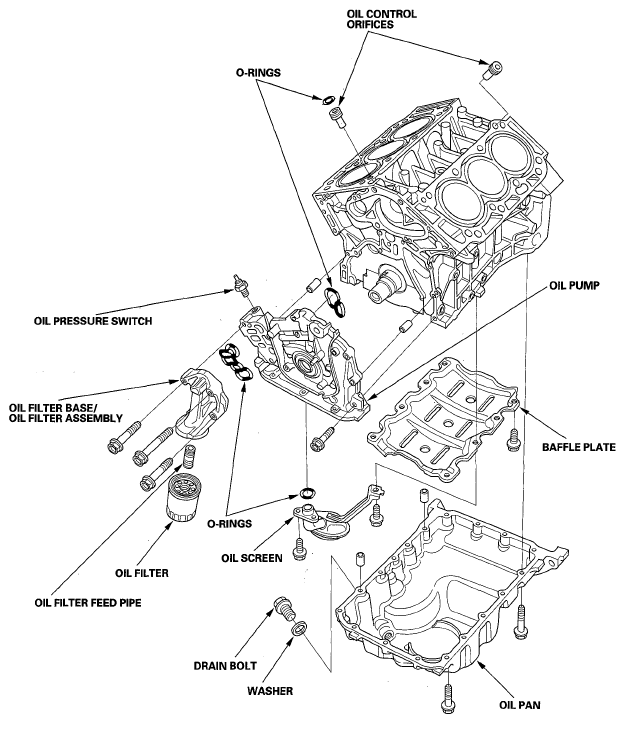

Fig 1: Identifying Engine Lubrication Component Location - '07 Model J35A7 Engine
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
