Vacuum Hose Routing
Vacuum Hose Routing

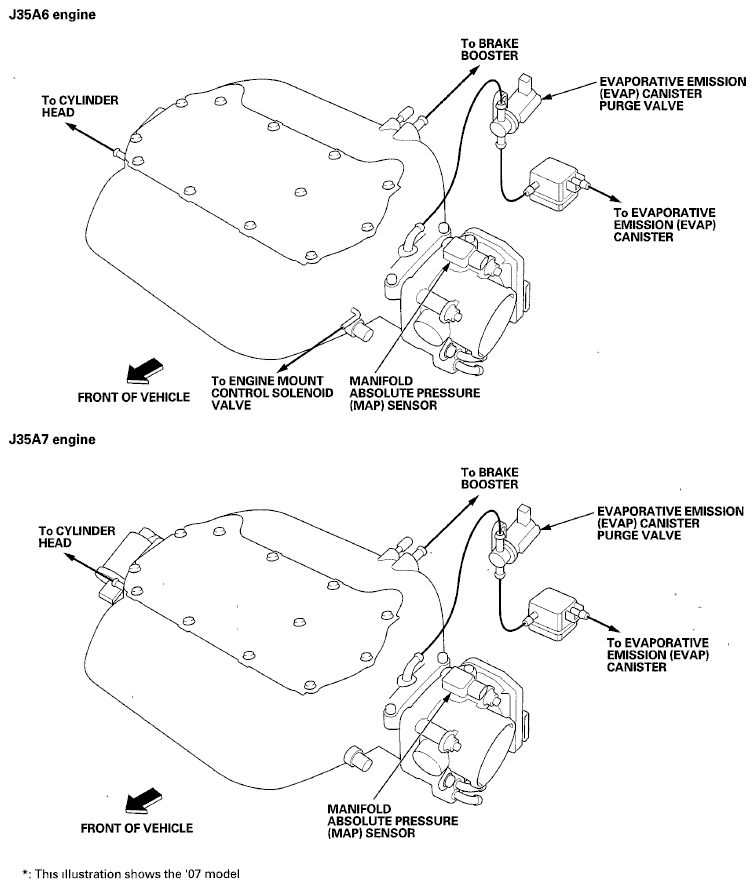

Fig 1: Identifying Vacuum Hose Routing (J35A6 Engine And J35A7 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
