MAP Sensor Replacement

Remove the engine cover (see step 7 under ENGINE REMOVAL ).
Disconnect the MAP sensor 3P connector (A).

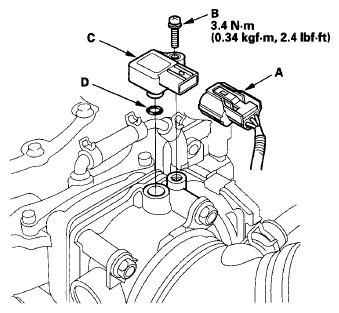

Fig 1: Identifying MAP Sensor 3P Connector, MAP Sensor And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw (B).
Remove the MAP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
