Maintenance Display

The maintenance minder is an important feature of the multi-information display (Touring, Touring with PAX tires). Based on engine and automatic transmission operating conditions, the Odyssey's onboard computer (PCM) calculates the remaining engine oil and the automatic transmission fluid life. The system also displays the remaining engine oil life along with the codes for other scheduled maintenance items needing service.

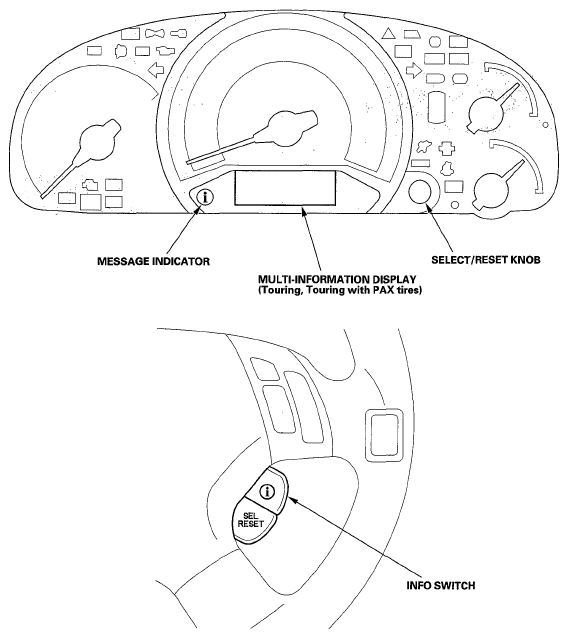

Fig 1: Identifying Information Display And Maintenance Minder Indicator
G05522581Courtesy of AMERICAN HONDA MOTOR CO., INC.
