Left Power Sliding Door Control Unit (With Navigation 07) Connector End View
Left Power Sliding Door Control Unit (With Navigation 07) Connector End View

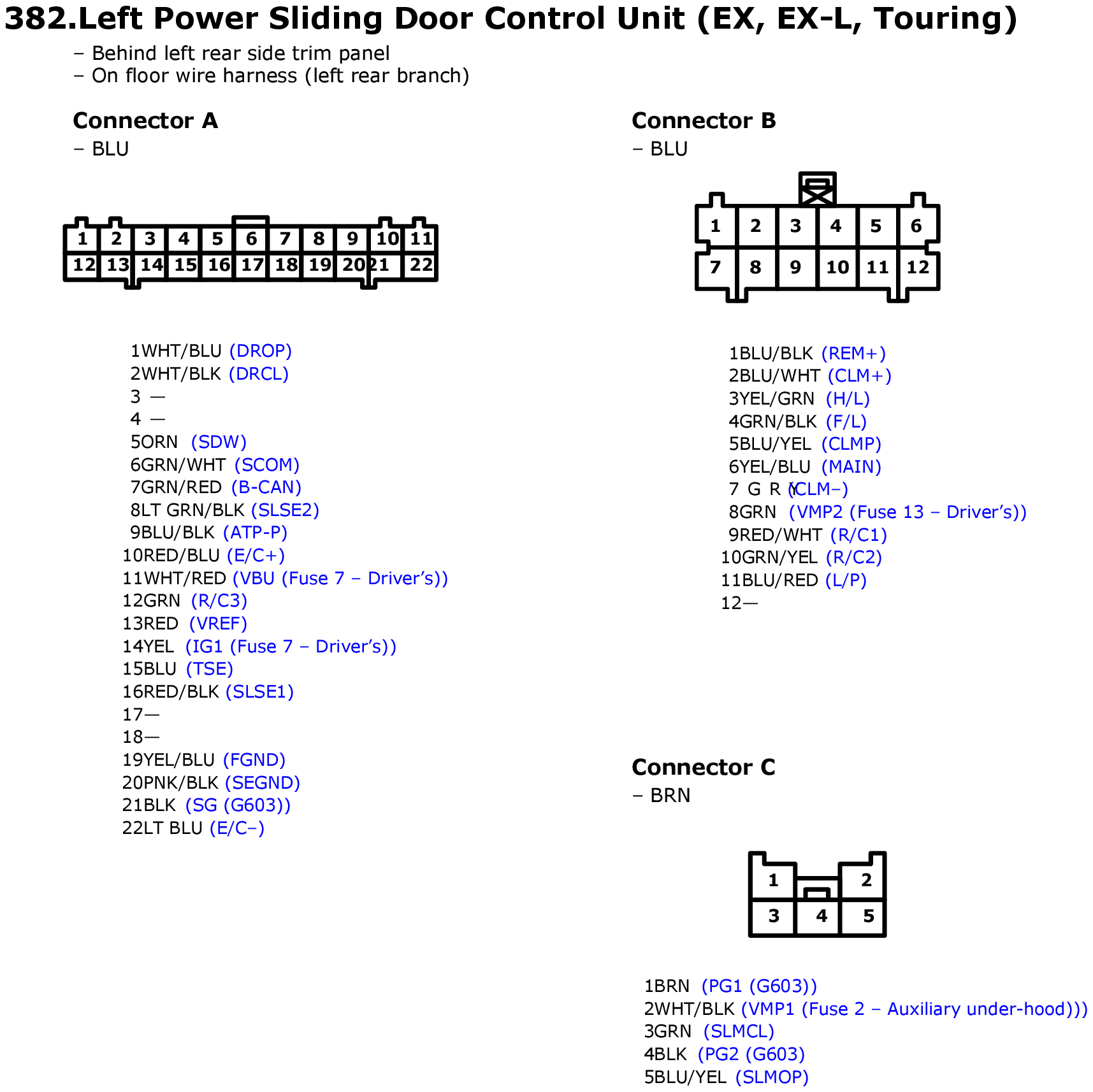

Fig 1: Left Power Sliding Door Control Unit (With Navigation 07) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
