A/T Gear Position Indicator Panel Assembly Replacement

NOTE:
  • The A/T gear position indicator panel, the A/T gear position indicator panel bracket, and the lever cover are not available separately. Replace the A/T gear position indicator panel, the A/T gear position indicator panel bracket, and the lever cover as a set.
  • Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Wrap the end of a flat-tip screwdriver with tape, pry off the D3 switch cover lock, and remove the D3 switch cover (A).
    Fig 1: Removing D3 Switch Cover
    G06680962Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the D3 switch (A) by expanding its locks (B). Remove the screws (C), the shift lever button (D), the button spring (E), the shift lever knob (F), and the shift lever knob cover (G).
    Fig 2: Identifying D3 Switch, Locks, Shift Lever Button And Button Spring
    G06680963Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the shift lever rod (A), and remove the A/T gear position indicator panel light socket (B).

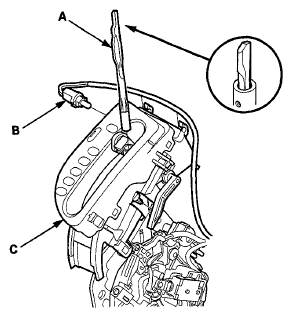

    Fig 3: Identifying Shift Lever Rod And A/T Gear Position Indicator Panel Light Socket
    G06680964Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the A/T gear position indicator panel assembly (C).
  6. Disassemble these items:
    • A/T gear position indicator panel (A)
    • Lever cover (B)
    • Shift lock release (C)
    • Release spring (D)
    • Shift lock release link (E)
    • Shift lock release lid (F)

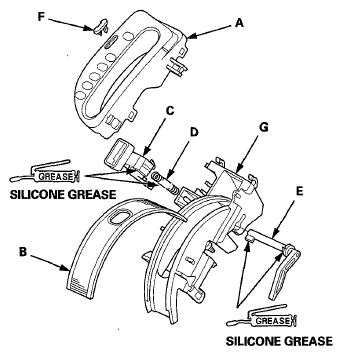

      Fig 4: Identifying Lever Cover, Shift Lock Release Link And Shift Lock Release Lid
      G06680965Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Apply silicone grease to the shift lock release, the release spring, and the shift lock release link.
  8. Install the shift lock release, the release spring, and the shift lock release link in a new A/T gear position indicator panel bracket (G), then install a new lever cover and a new A/T gear position indicator panel on the panel bracket. Install the shift lock release lid.
  9. Install the A/T gear position indicator panel assembly (A) on the shift lever bracket.

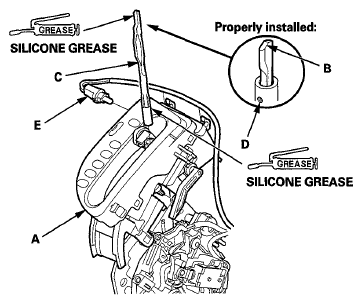

    Fig 5: Identifying A/T Gear Position Indicator Panel Assembly
    G06680966Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Apply silicone grease to the shift lever rod. Point the bevel (B) of the shift lever rod (C) toward the threaded hole (D), and push it into the bottom.
  11. Install the A/T gear position indicator panel light socket (E) in the indicator panel.
  12. Point the bevel (A) of the shift lever rod (B) toward the threaded holes (C), and push it into the bottom. Apply silicone grease to top of the rod.

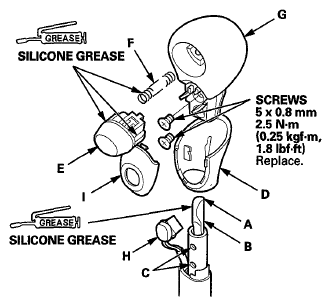

    Fig 6: Identifying Shift Lever Rod, Bevel And Threaded Holes
    G06680967Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the shift lever knob cover (D).
  14. Apply silicone grease to the shift lever button (E) and button spring (F), then install the spring, the shift lever button, and the shift lever knob (G).
  15. Install the shift lever knob to the shift lever with new screws.
  16. Install the D3 switch (H) and the D3 switch cover (I).
  17. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
