PCM A/T Control System Electrical Connections
PCM A/T Control System Electrical Connections

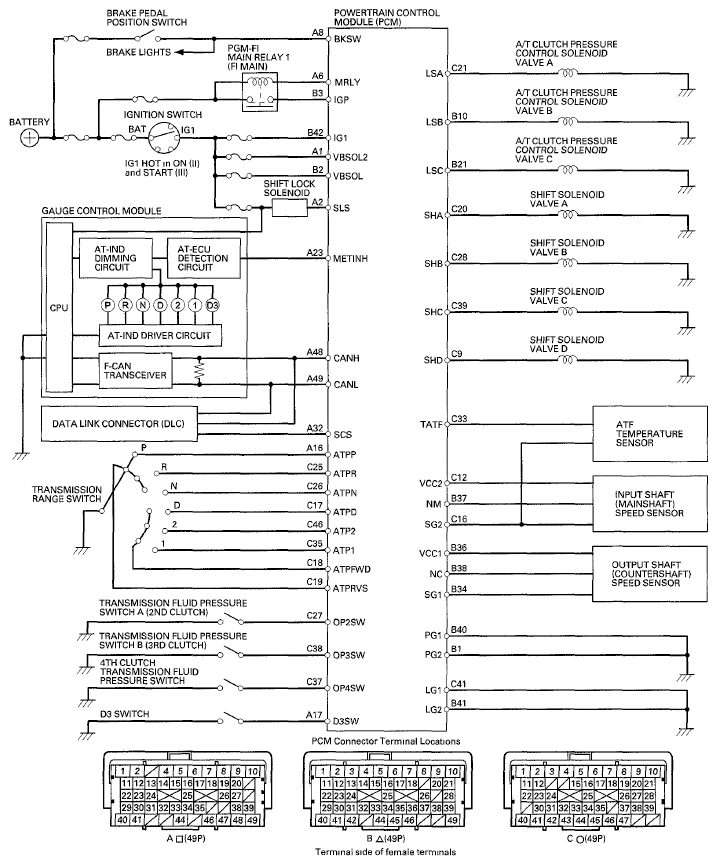

Fig 1: Clutch Pressure Control System Diagram (PCM A/T Control System Electrical Connections)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
