Relays And Control Unit Locations: Dashboard

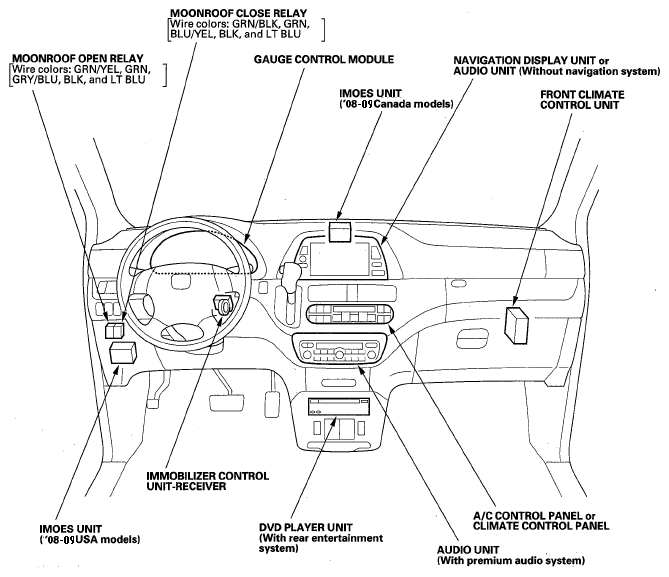

Fig 1: Identifying Dashboard Components Location (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Dashboard Components Location (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Dashboard Components Location (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
