Automatic Lighting Control Unit (Touring) Connector End View
Automatic Lighting Control Unit (Touring) Connector End View

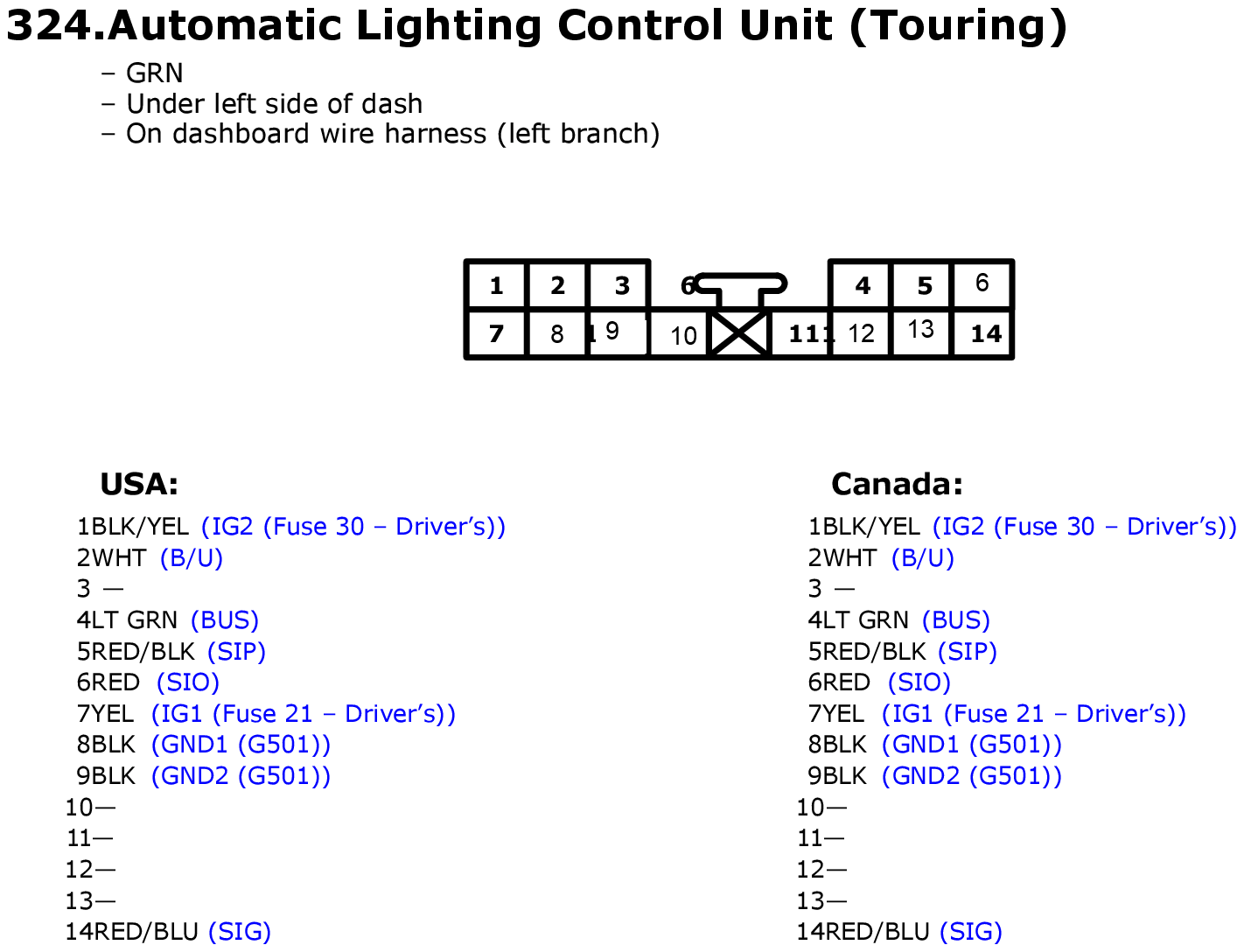

Fig 1: Automatic Lighting Control Unit (Touring) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

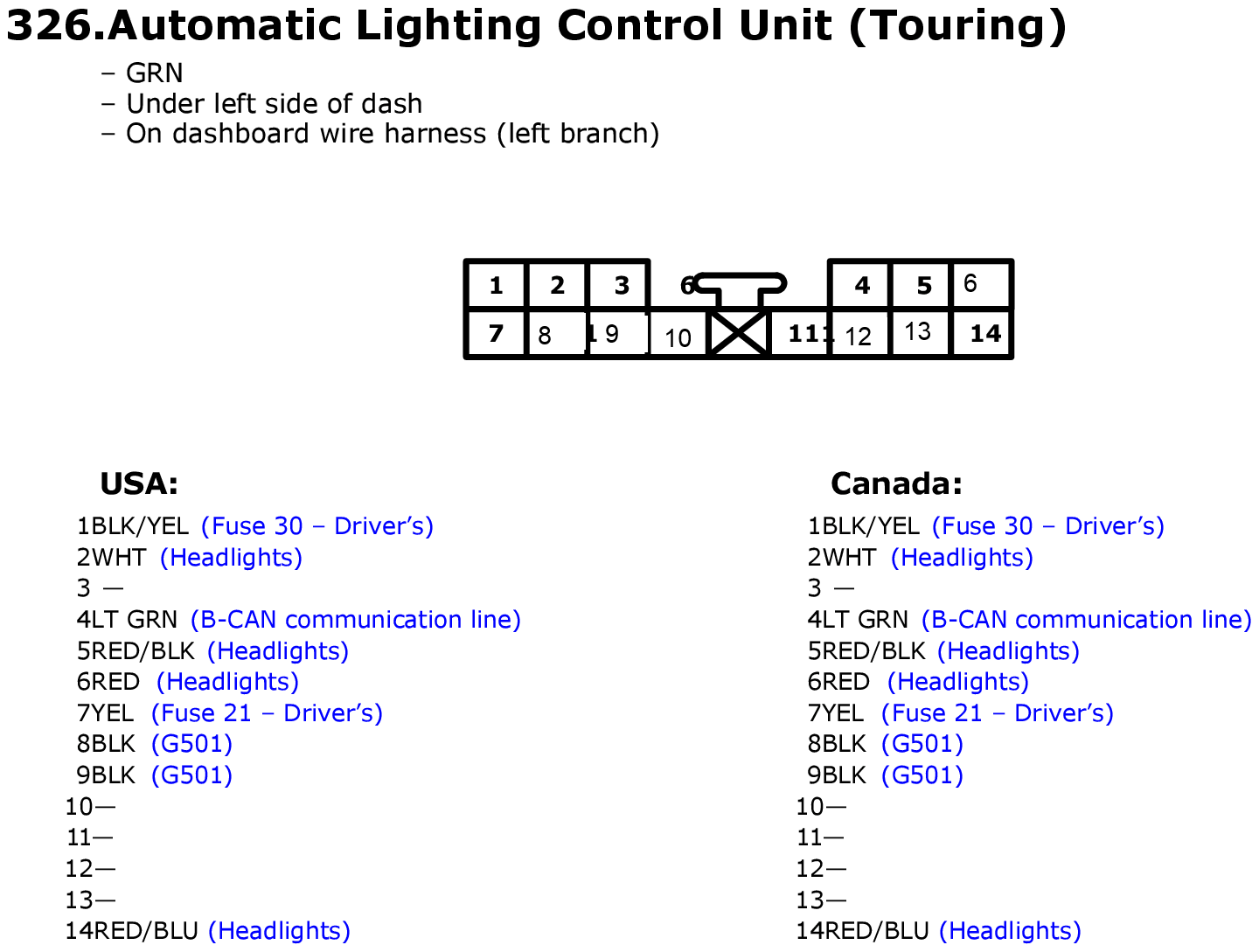

Fig 1: Automatic Lighting Control Unit (Touring) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
