VSA (Vehicle Stability Assist) System Components
›
Component Location Index
Component Location Index

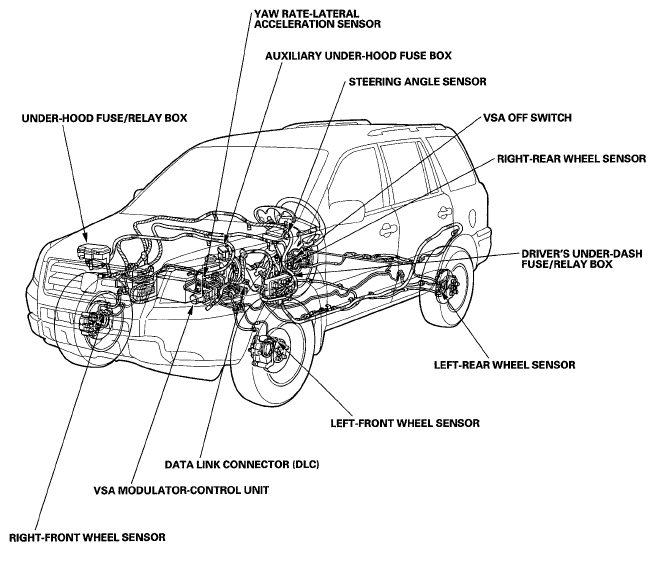

Fig 1: Identifying Location Of VSA System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
