VSA Modulator-Control Unit Removal and Installation: Removal

Make sure the ignition switch OFF.
Disconnect the VSA modulator-control unit 47P connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

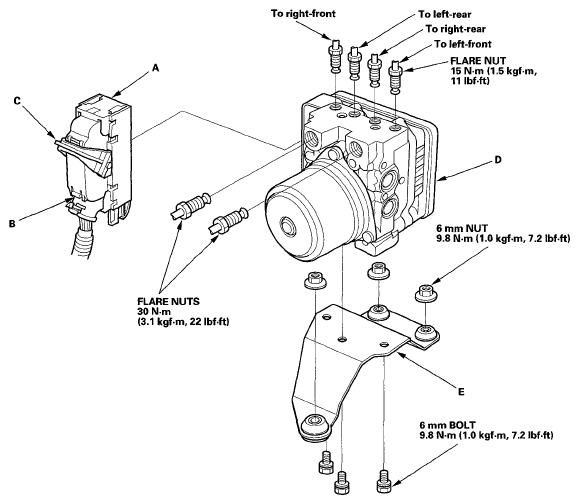

Fig 1: VSA Modulator-Control Unit Removing/Installing Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit (D).
Remove the VSA modulator-control unit with bracket (E) from the body.
Remove the VSA modulator-control unit from the bracket.
