Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

Front

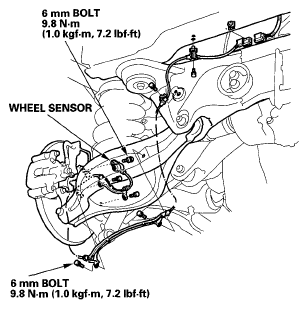

Fig 1: Wheel Sensor With Torque Specifications (Front)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

Fig 2: Wheel Sensor With Torque Specifications (Rear)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
