Gauge Control Module (XM Radio) Connector End View
Gauge Control Module (XM Radio) Connector End View

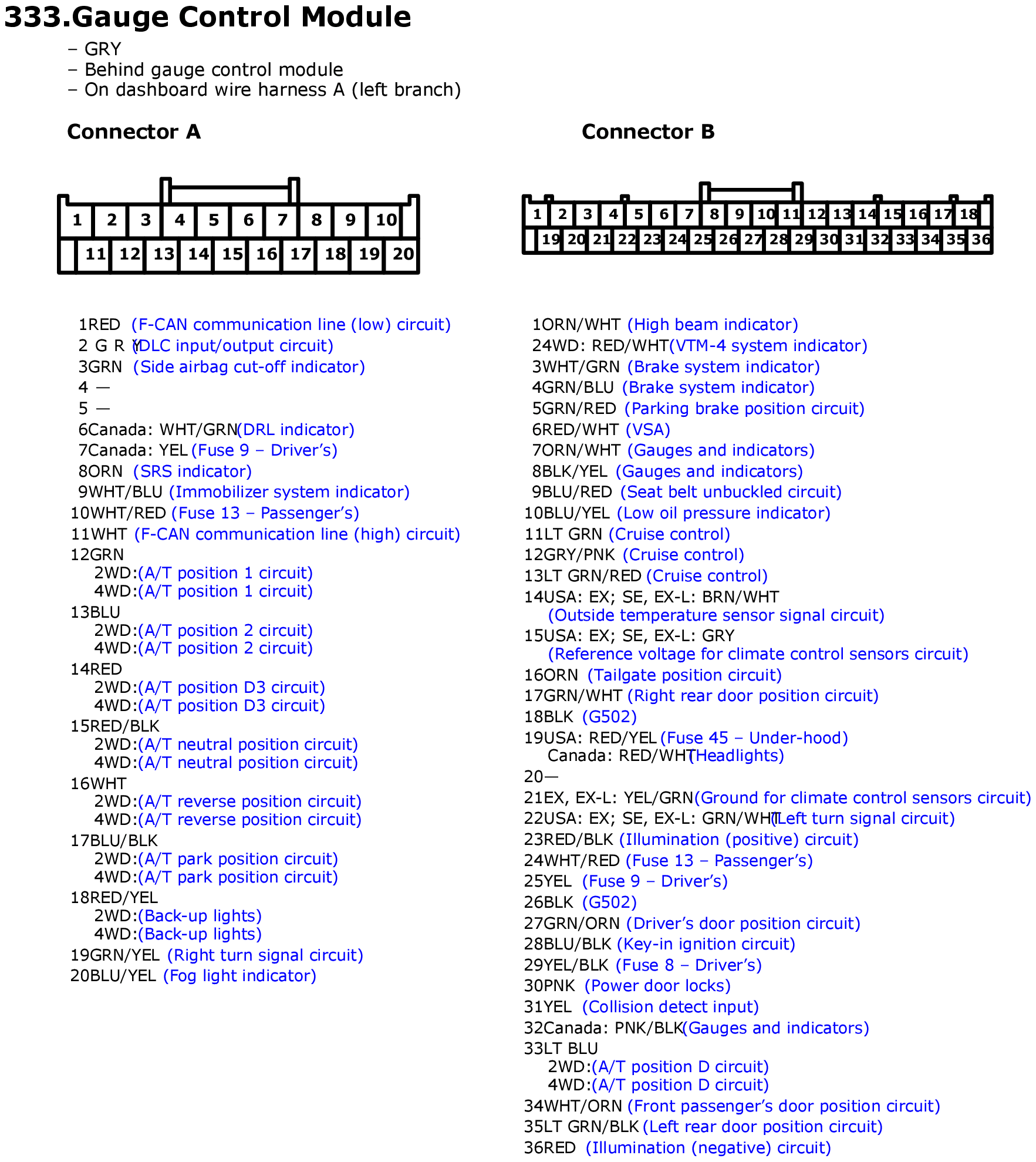

Fig 1: Gauge Control Module (XM Radio) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
