J35A9 Engine

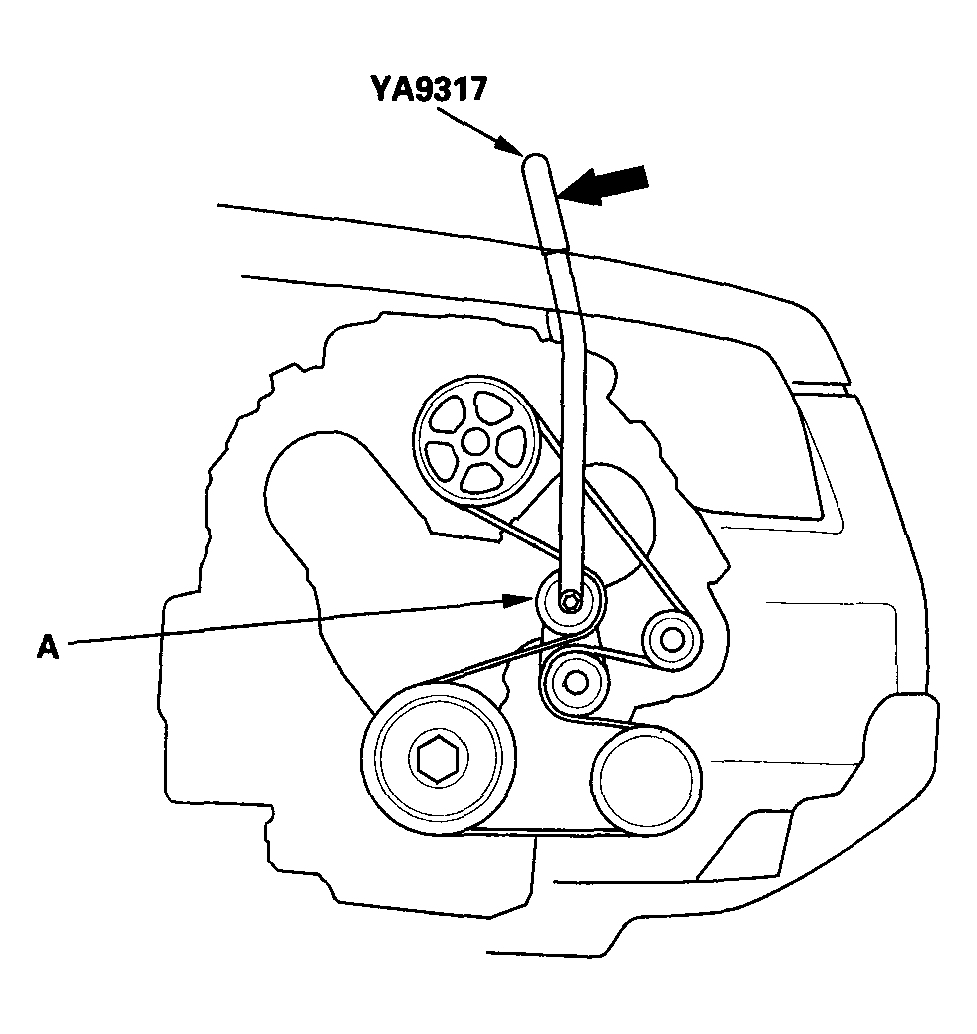

  1. Move the auto-tensioner (A) with a belt tension release tool to relieve tension from the drive belt, then remove the drive belt.
    Fig 1: Removing Drive Belt - J35A9 Engine
    G04244467Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new belt in the reverse order of removal.
    NOTE: For belt routing, see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING
