Electrical Compass Unit Input Test

Disconnect the 7P connector (A) from the electrical compass (B).

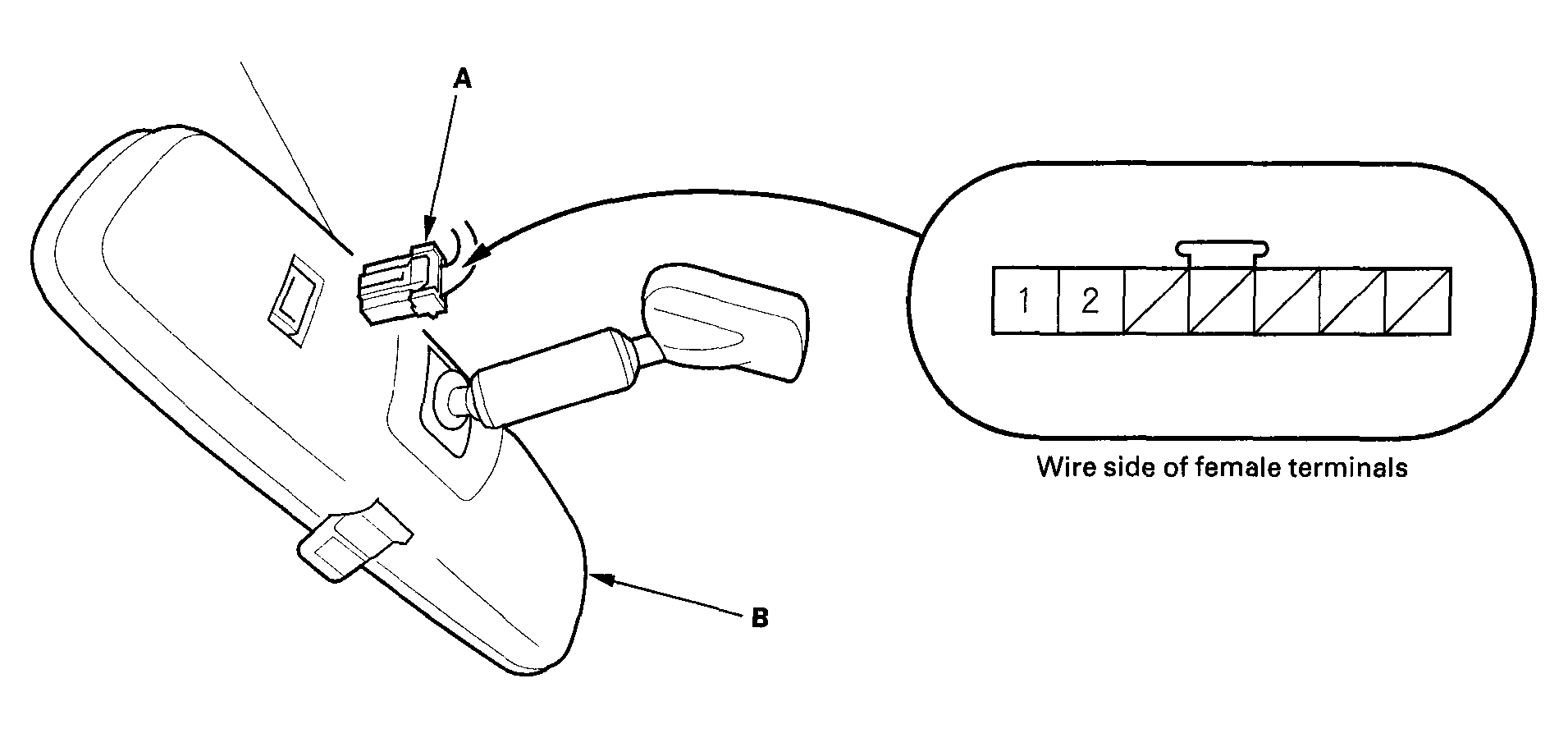

Fig 1: Disconnecting 7P Connector From Electrical Compass
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.

Reconnect the connector and, make these input tests at the connector.

If any test indicates a problem, find and correct the cause, then recheck the system.

If all the input tests prove OK, the electrical compass unit must be faulty; replace it.

TERMINALS REFERENCE CHART (ELECTRICAL COMPASS UNIT INPUT)

Cavity	Wire	Test Condition	Test: Desired result	Possible cause if result is not obtained
2	BLK	Under all conditions	Measure the voltage to ground: There should be less than 1 V.	Poor ground (G901) An open in the wire
1	YEL/GRN	Ignition switch ON (II)	Measure the voltage to ground: There should be battery voltage.	Blown No. 7 (7.5 A) fuse in the driver's under-dash fuse/relay box An open in the wire
