Horn Switch Test
- Remove the steering column covers (see
STEERING COLUMN REMOVAL AND INSTALLATION
).

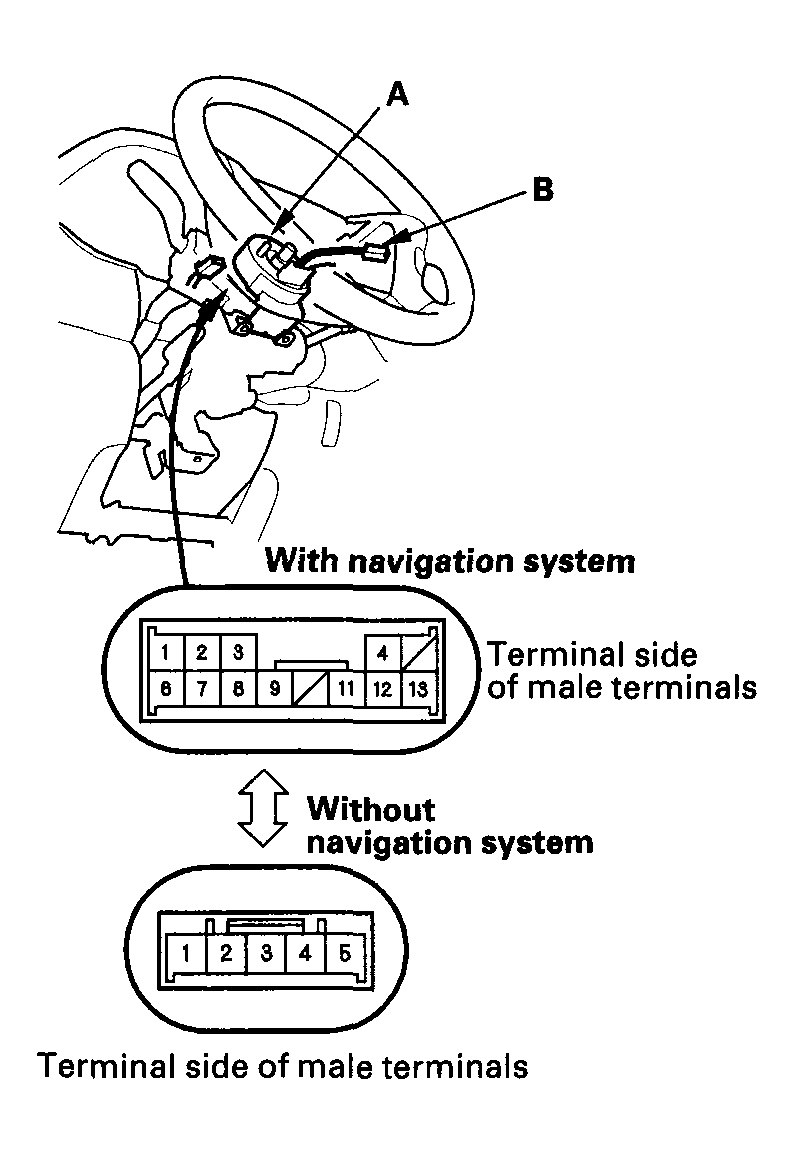

- Disconnect the dashboard wire harness B 13P (or 5P) connector (A) from the cable reel (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the dashboard wire harness B 13P (or 5P) connector (A) No. 1 terminal to body ground. The horns should sound.
- If the horns sound, go to step 4.
- If the horns don't sound, check the horn relay circuit.
- Check for continuity between the No. 1 terminal of the cable reel side 13P (or 5P) connector and body ground with the horn switch pressed.
- If there is continuity, the switch is OK.
- If there is no continuity, go to step 6.
- Remove the driver's airbag assembly (see
DRIVER'S AIRBAG REPLACEMENT
).

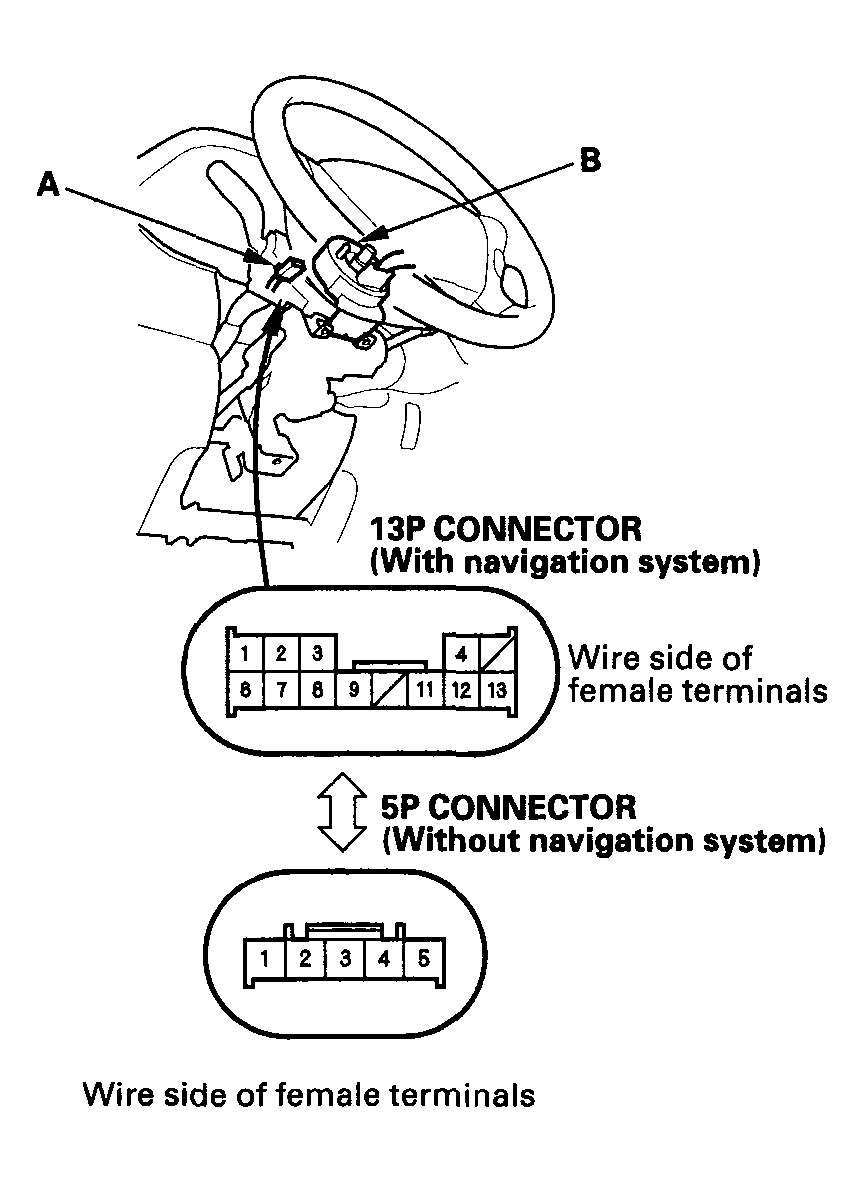

- Check for continuity between the cable reel 13P (or 5P) connector (A) and the horn switch positive terminal (B).
- If there is no continuity, check for continuity of the radio remote switch harness. If the harness is OK, replace the cable reel (see
CABLE REEL REPLACEMENT
) and check for proper operation.
- If there is continuity, go to step 7.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the center of the steering column and ground.
- If there is continuity, replace the horn plate.
- If there is no continuity, replace the steering column.
