Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A) from each horn (B).

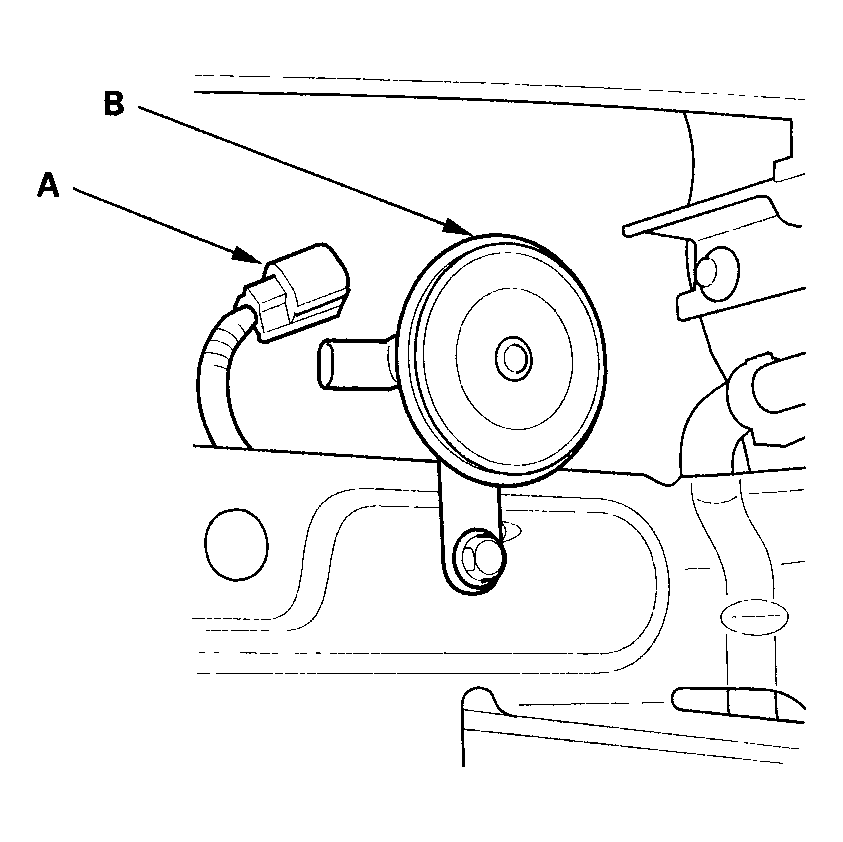

    Fig 1: Disconnecting 1P Connector From Each Horn
    G04247218Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the mounting bolt and horn.
  4. Test each horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
    Fig 2: Identifying Horn Grounding Bracket
    G04247219Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If it fails to sound, replace it.
