J35Z1 Engine

  1. Remove the battery.
  2. Remove the battery base (see step 11 in ENGINE REMOVAL  ).
  3. Support the engine with a jack and wood block under the oil pan.
  4. Disconnect the engine mount control connector (A).

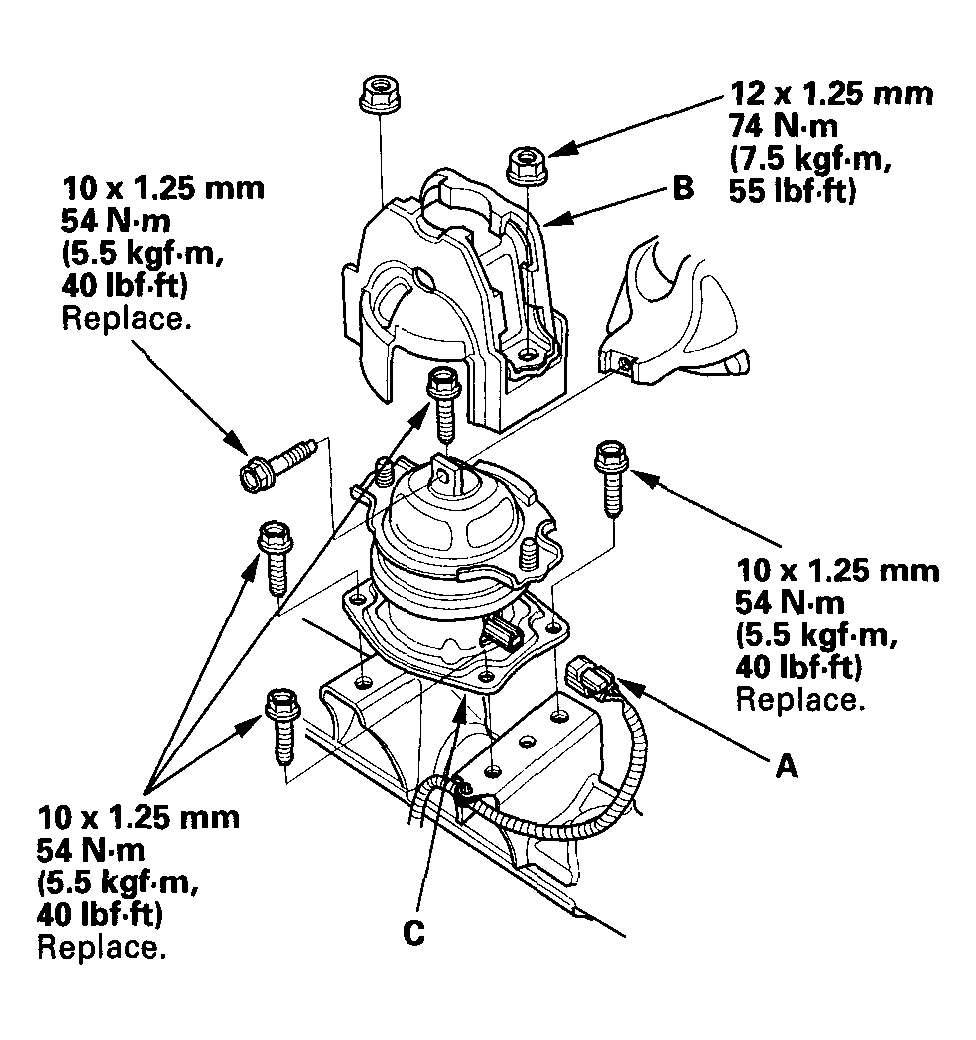

    Fig 1: Disconnecting Engine Mount Control Connector With Torque Specifications
    G04244580Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the front mount stop (B), then remove the front engine mount (C).
  6. Install the front engine mount in the reverse order of removal.
