Drain Bolt Installation
Drain Bolt Installation
NOTE:
When installing the drain bolt, always use new washer.

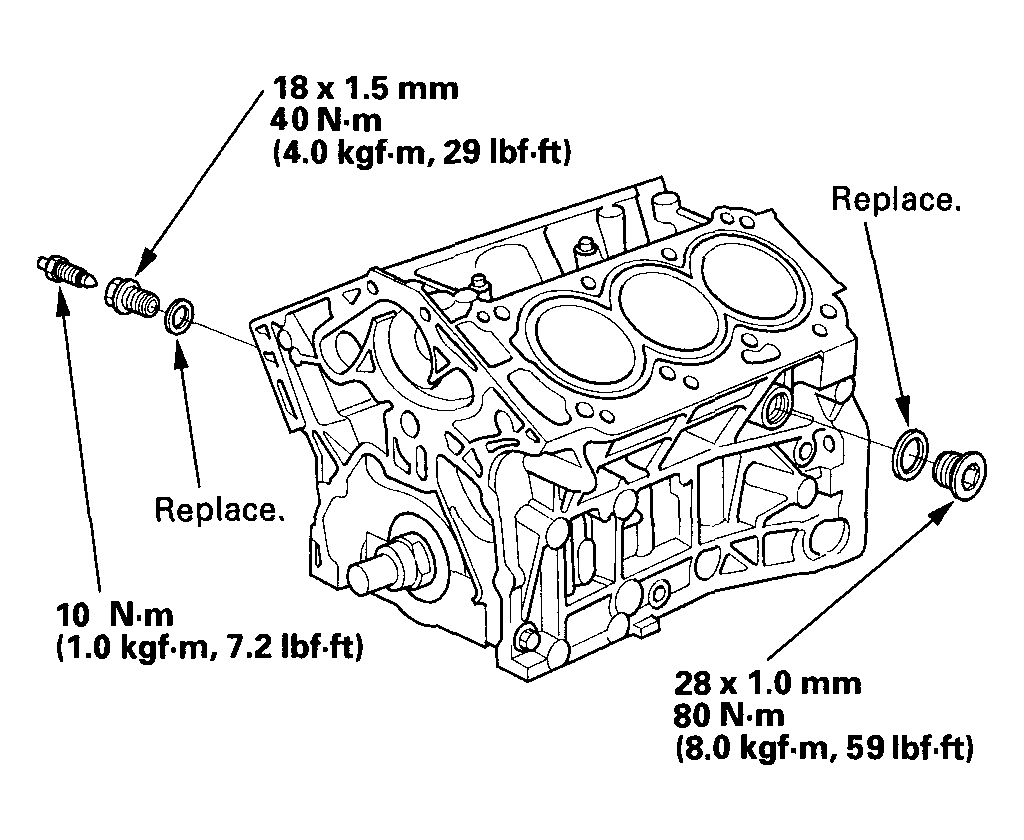

Fig 1: Installing Drain Bolt With New Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
