PCM Electrical Connections

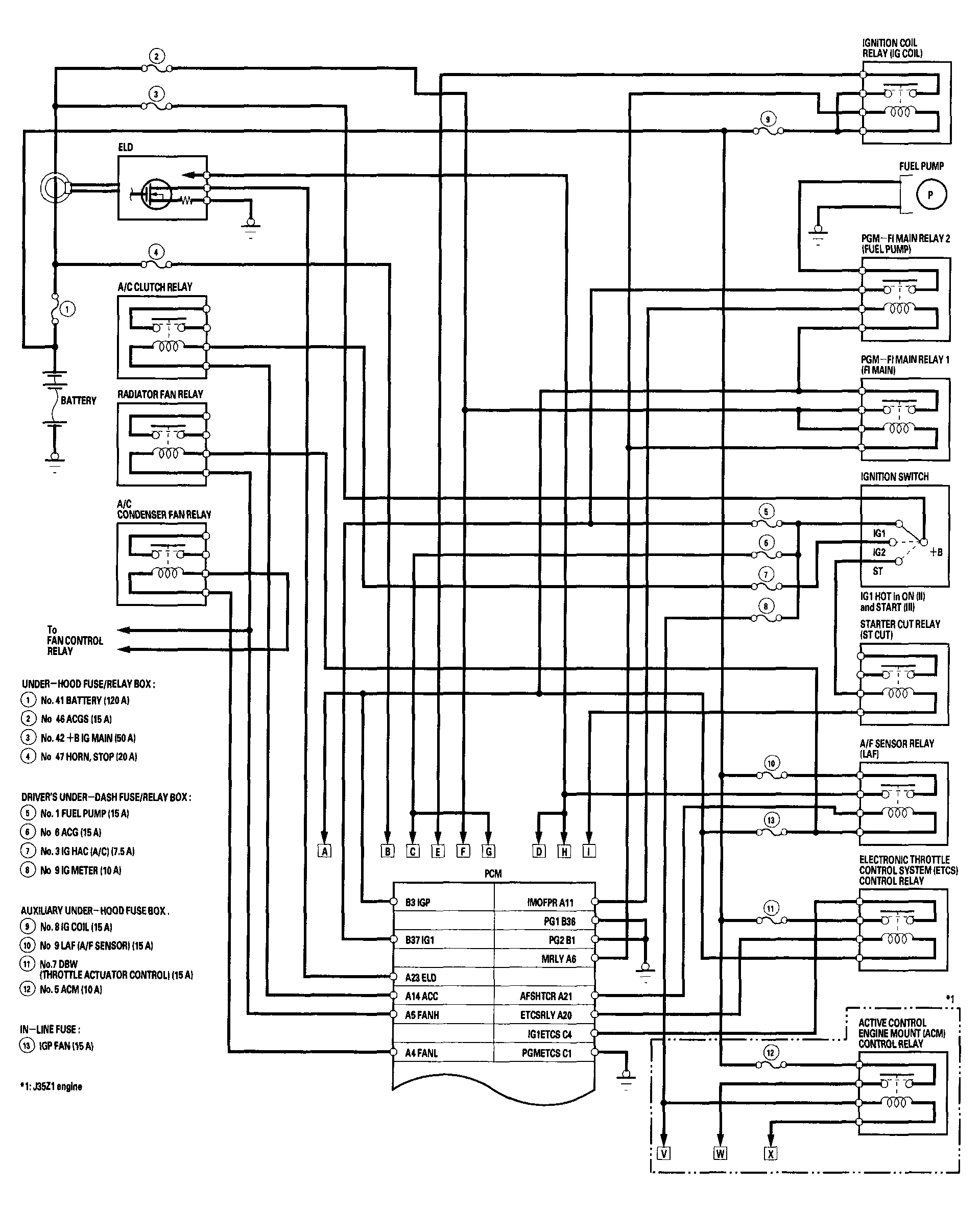

Fig 1: PCM Electrical Connections (1 Of 6)

G04245058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

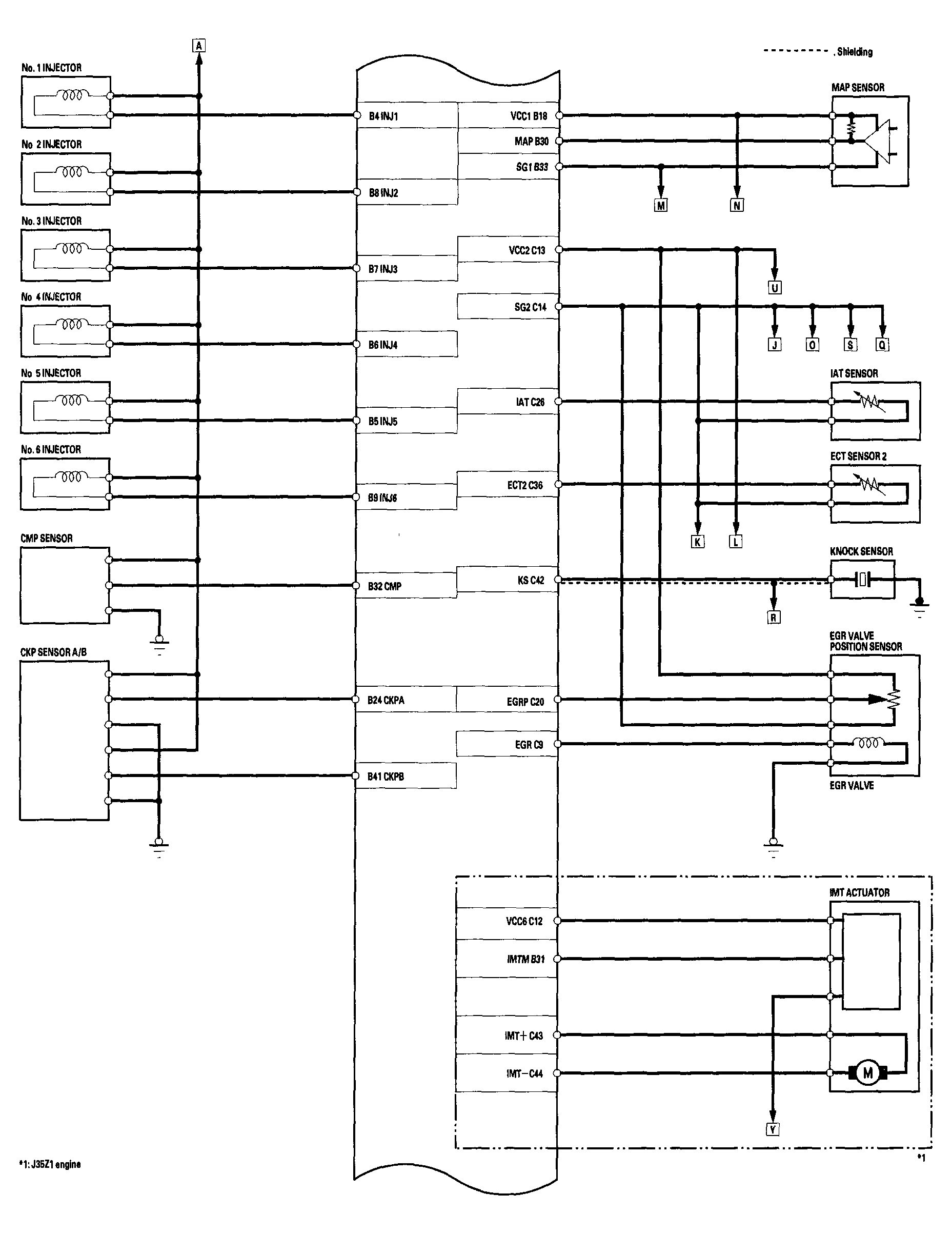

Fig 2: PCM Electrical Connections (2 Of 6)

G04245059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

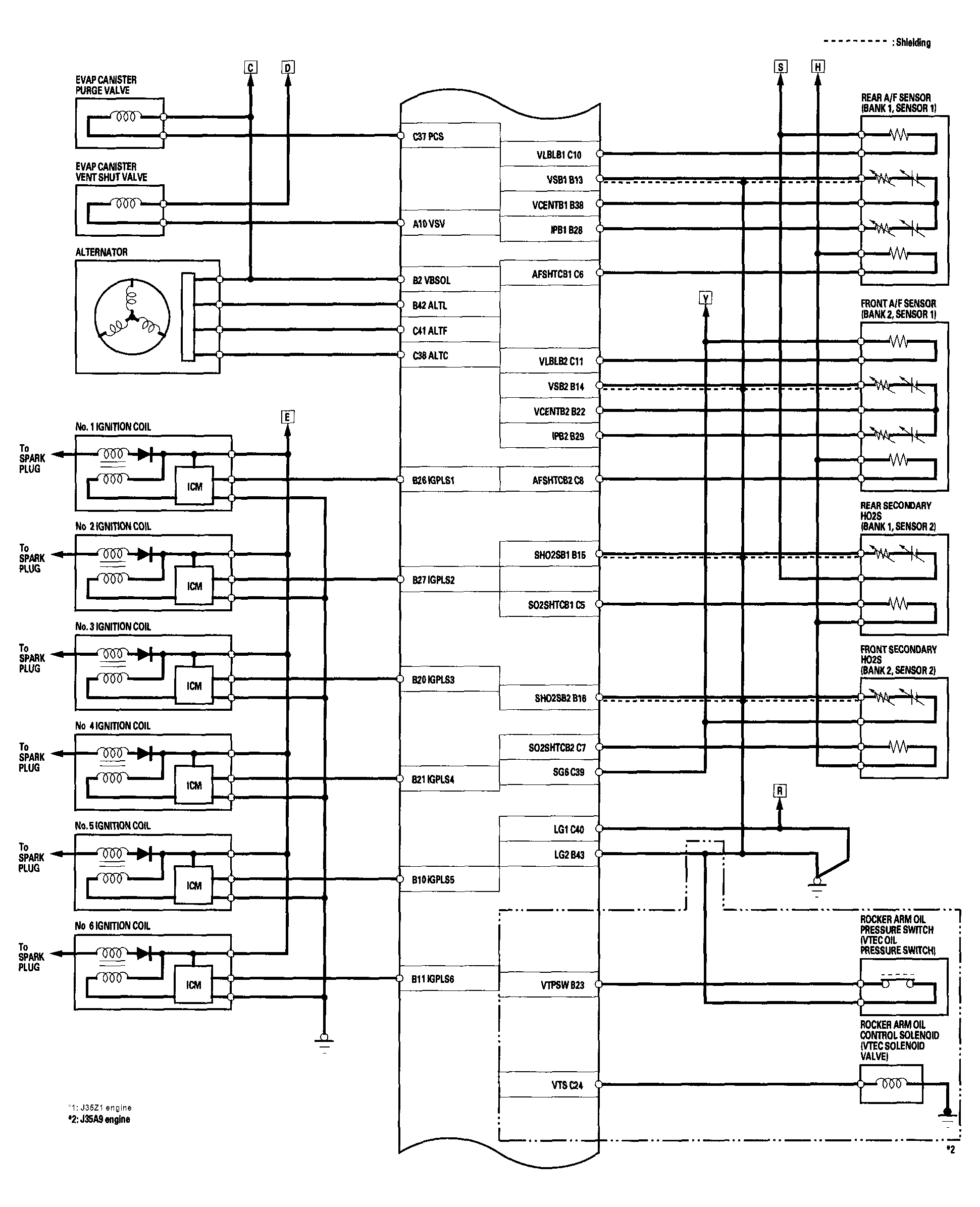

Fig 3: PCM Electrical Connections (3 Of 6)

G04245060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

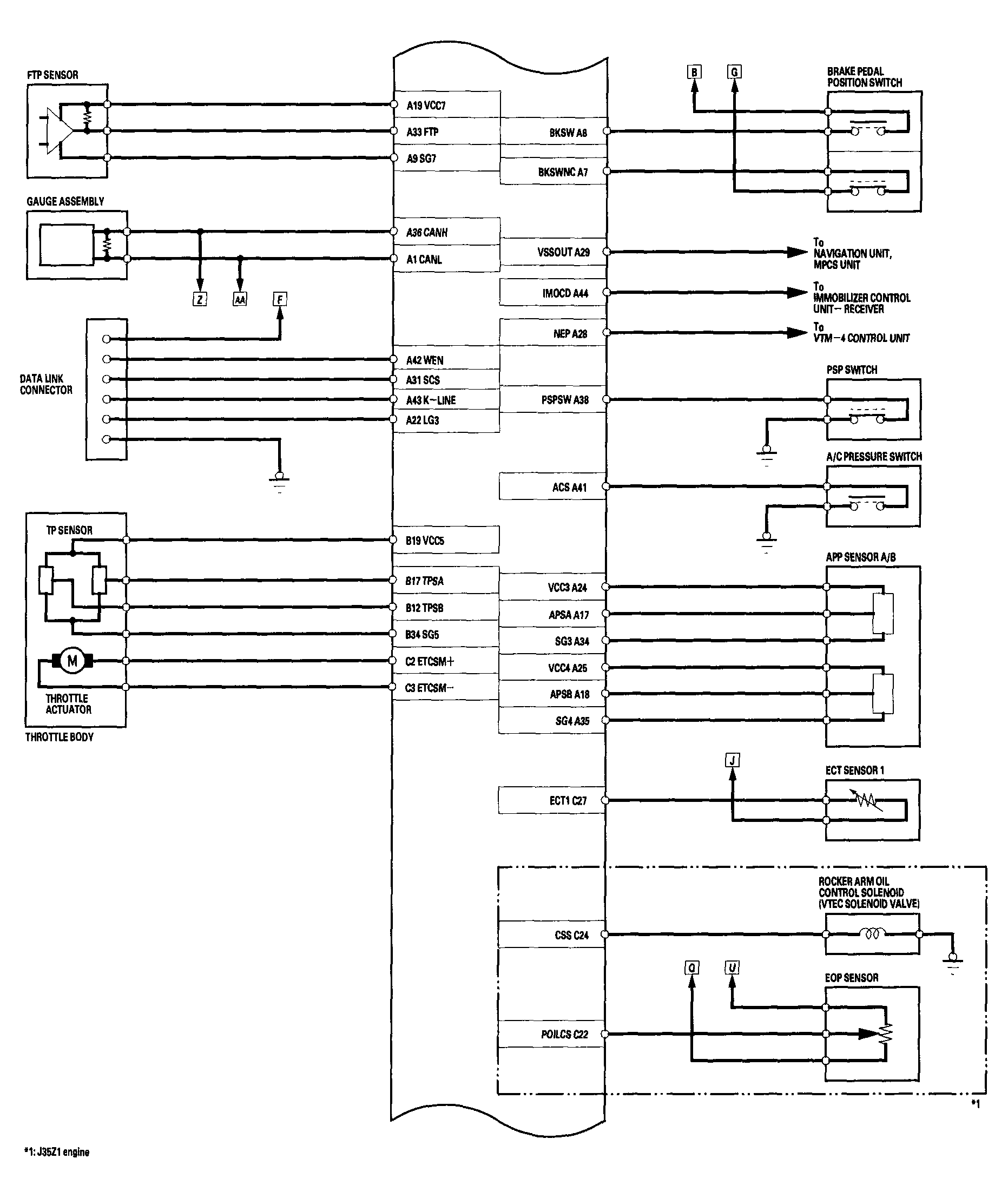

Fig 4: PCM Electrical Connections (4 Of 6)

G04245061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

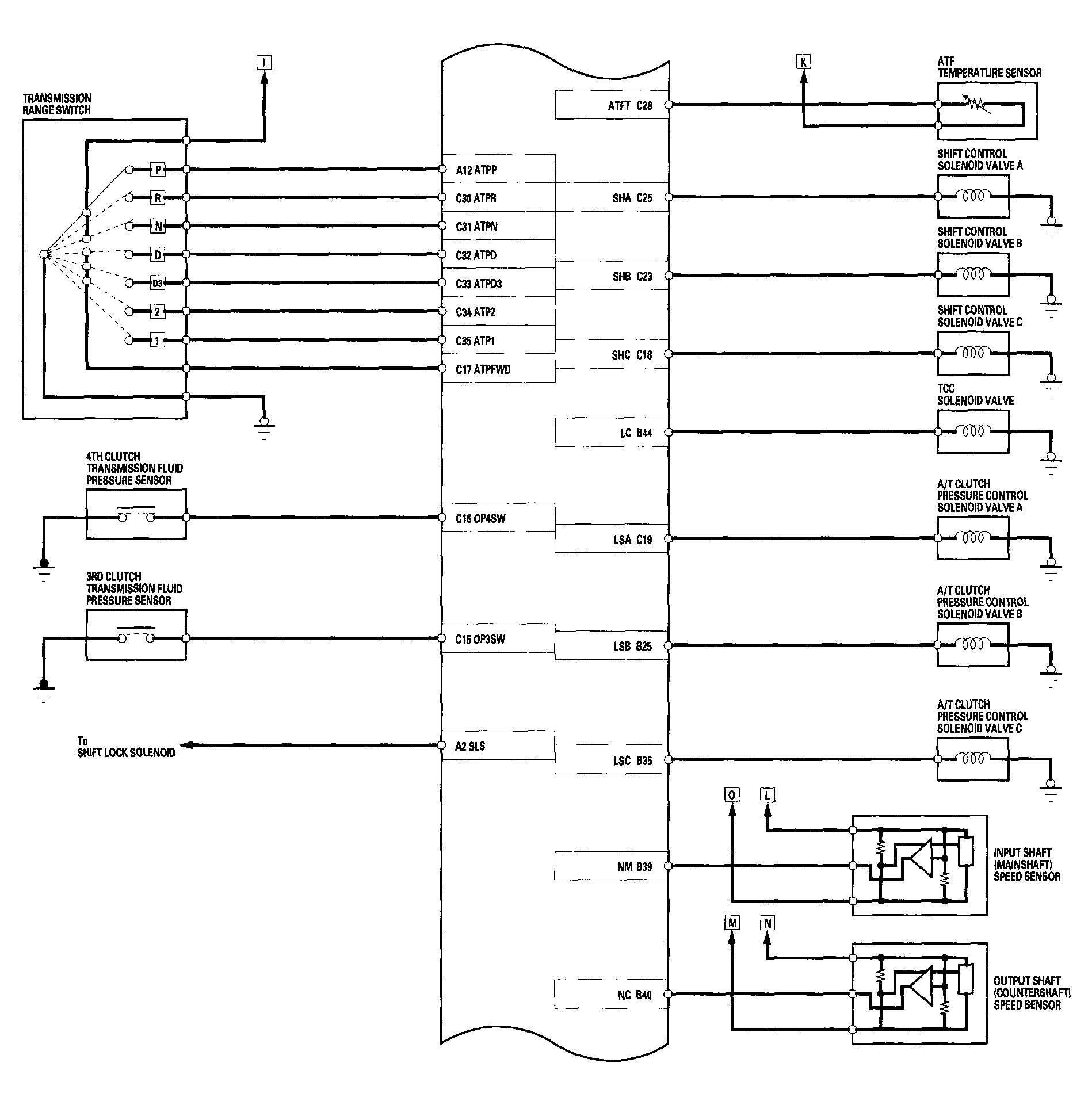

Fig 5: PCM Electrical Connections (5 Of 6)

G04245062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

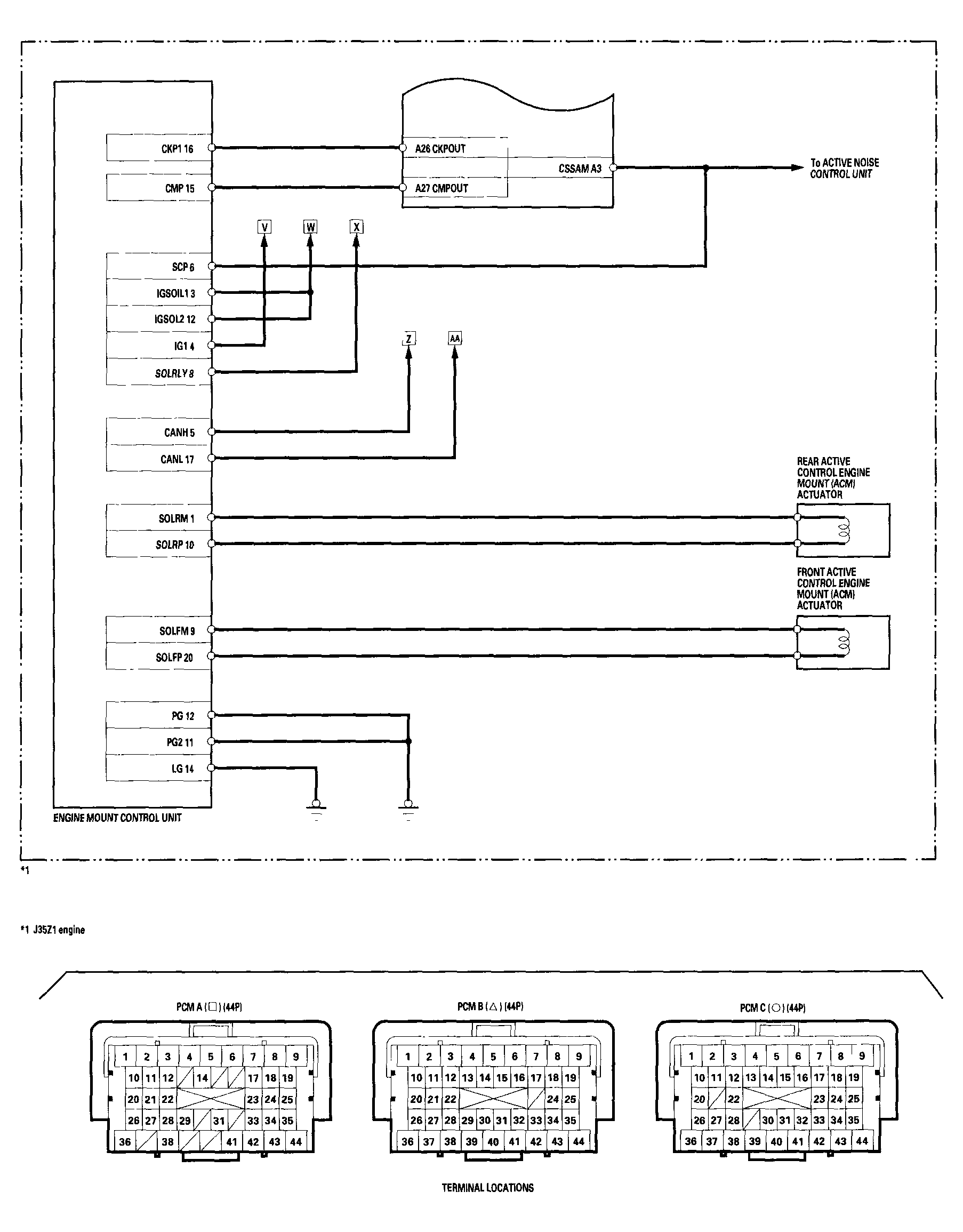

Fig 6: PCM Electrical Connections (6 Of 6)

G04245063

Courtesy of AMERICAN HONDA MOTOR CO., INC.
