Vacuum Distribution

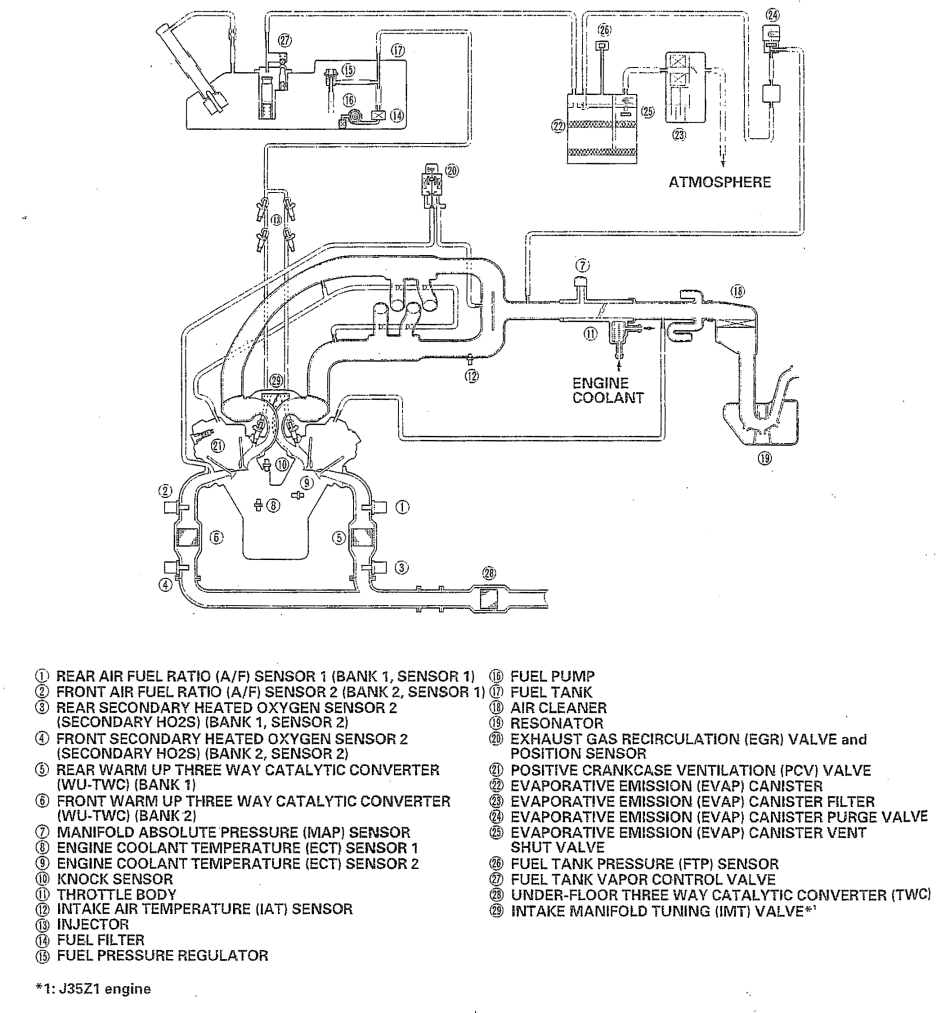

Fig 1: View Of Vacuum Distribution Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
