2007
›
Pilot EX, 3.5 YF2
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Circuit Diagram
Circuit Diagram

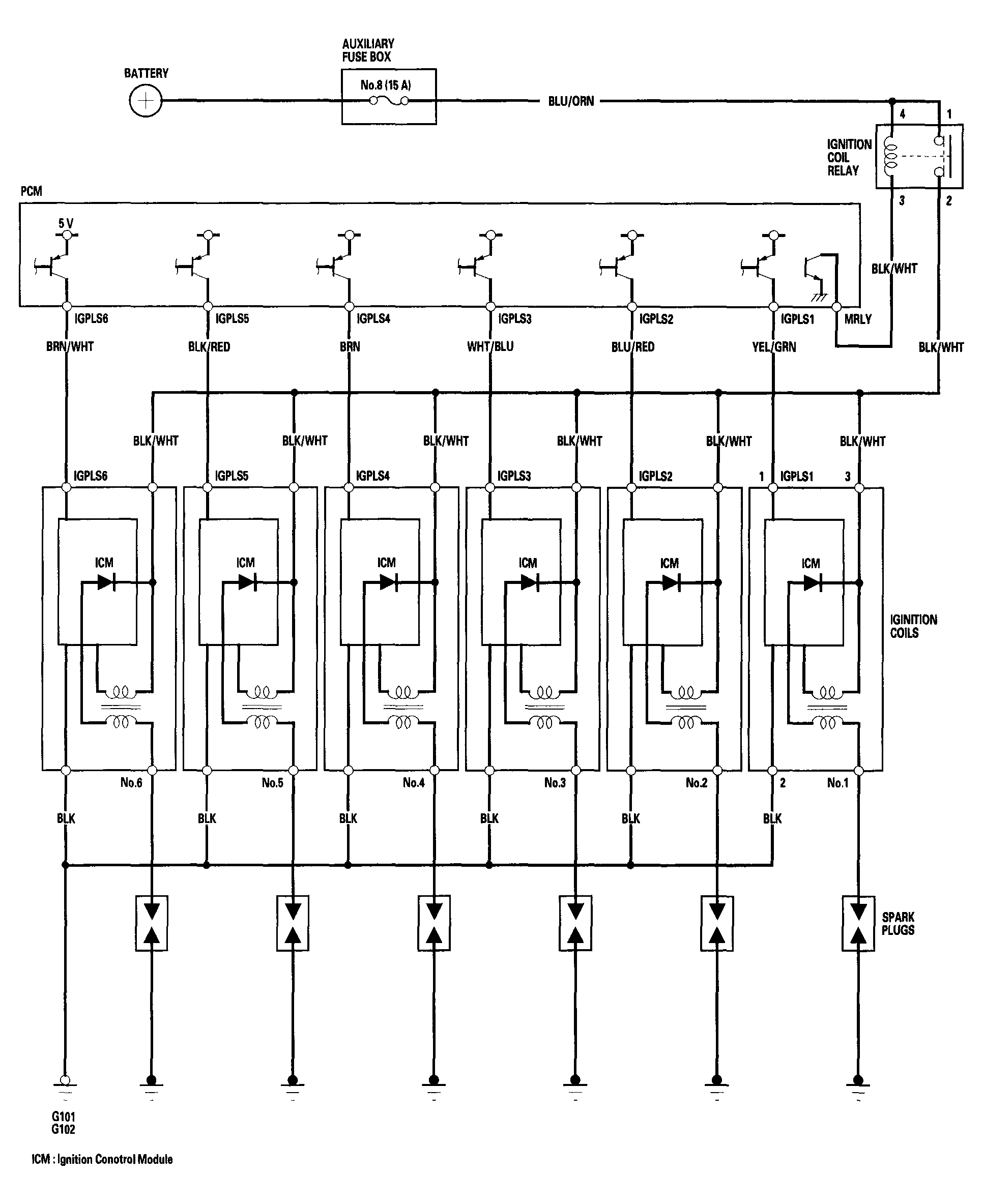

Fig 1: Ignition System - Circuit Diagram
