Air Cleaner Removal/Installation

  1. Remove the bolts (A).

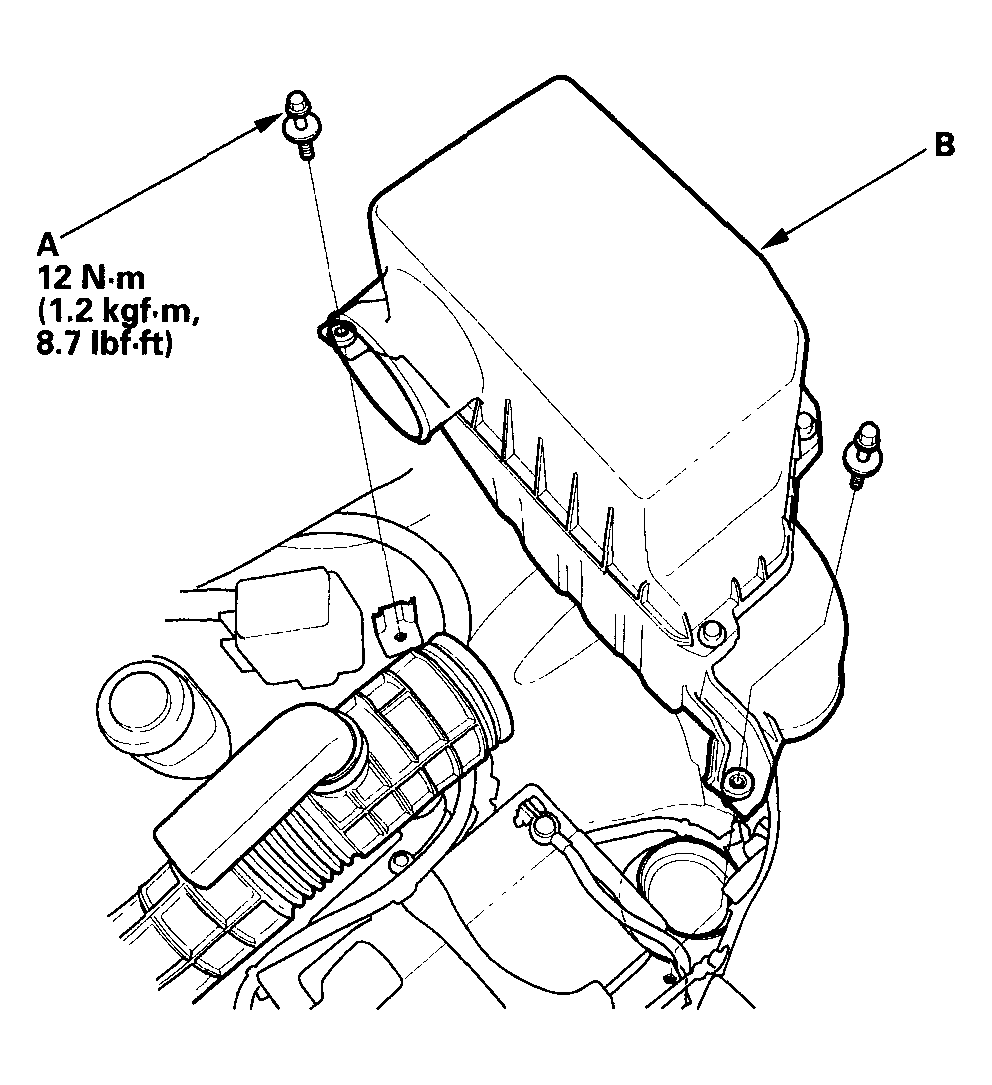

    Fig 1: Removing Air Cleaner And Bolts With Torque Specifications
    G04245524Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (B).
  3. Install the parts in the reverse order of removal.
