Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the side branch tube (A).

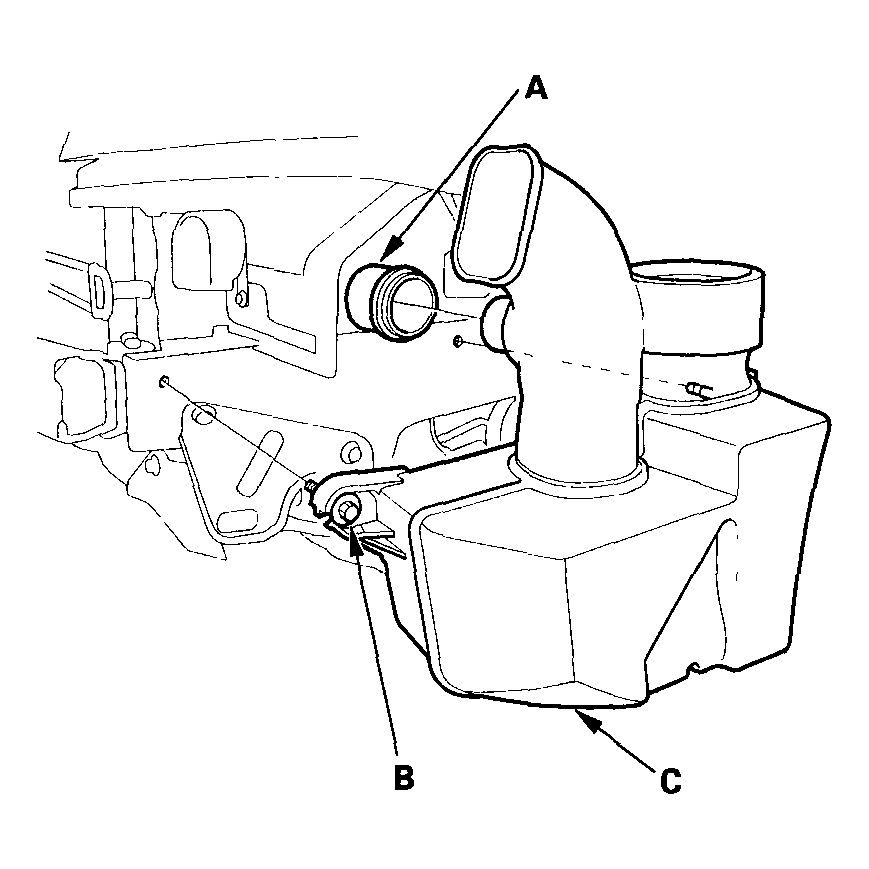

    Fig 1: Removing Side Branch Tube, Bolts & Resonator
    G04245526Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B).
  4. Remove the resonator (C).
  5. Install the parts in the reverse order of removal.
