Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Replacement

  1. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) connector (A).

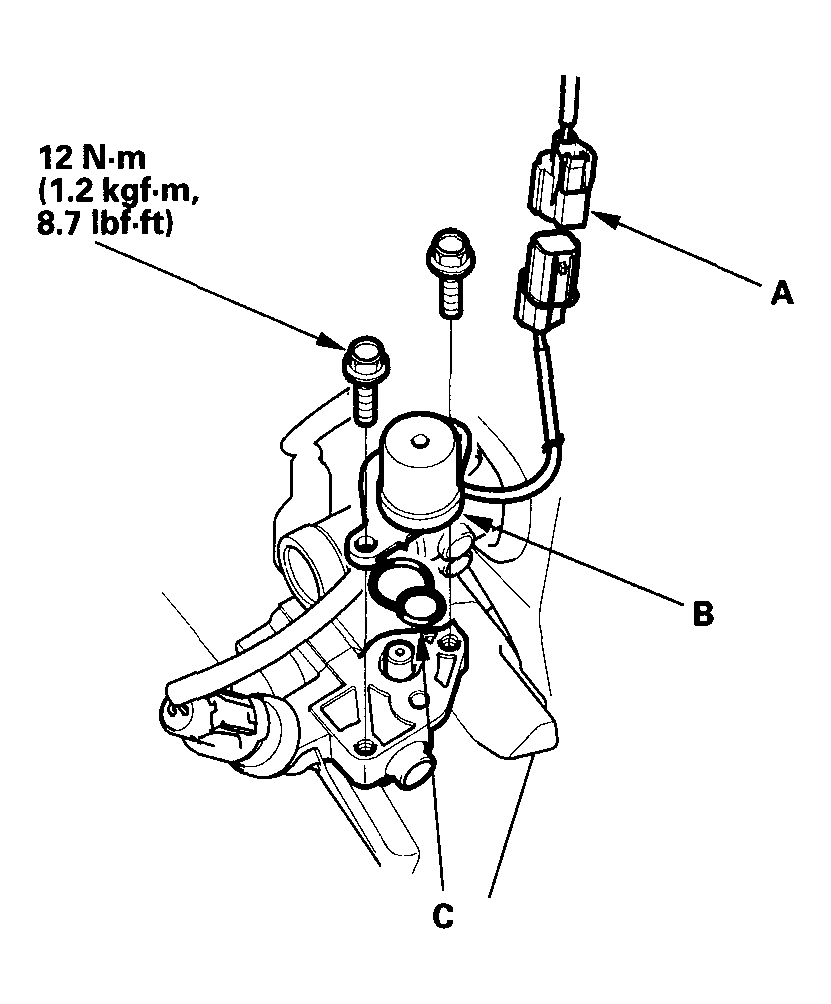

    Fig 1: Disconnecting Rocker Arm Oil Control Solenoid Connector (A) With Torque Specifications
    G04245368Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rocker arm oil control solenoid (VTEC solenoid valve) (B).
  3. Install the valve in the reverse order of removal with a new O-ring (C).
