Audio Remote Switch/Voice Control Switch (EX-L: Navigation) Connector End View
Audio Remote Switch/Voice Control Switch (EX-L: Navigation) Connector End View

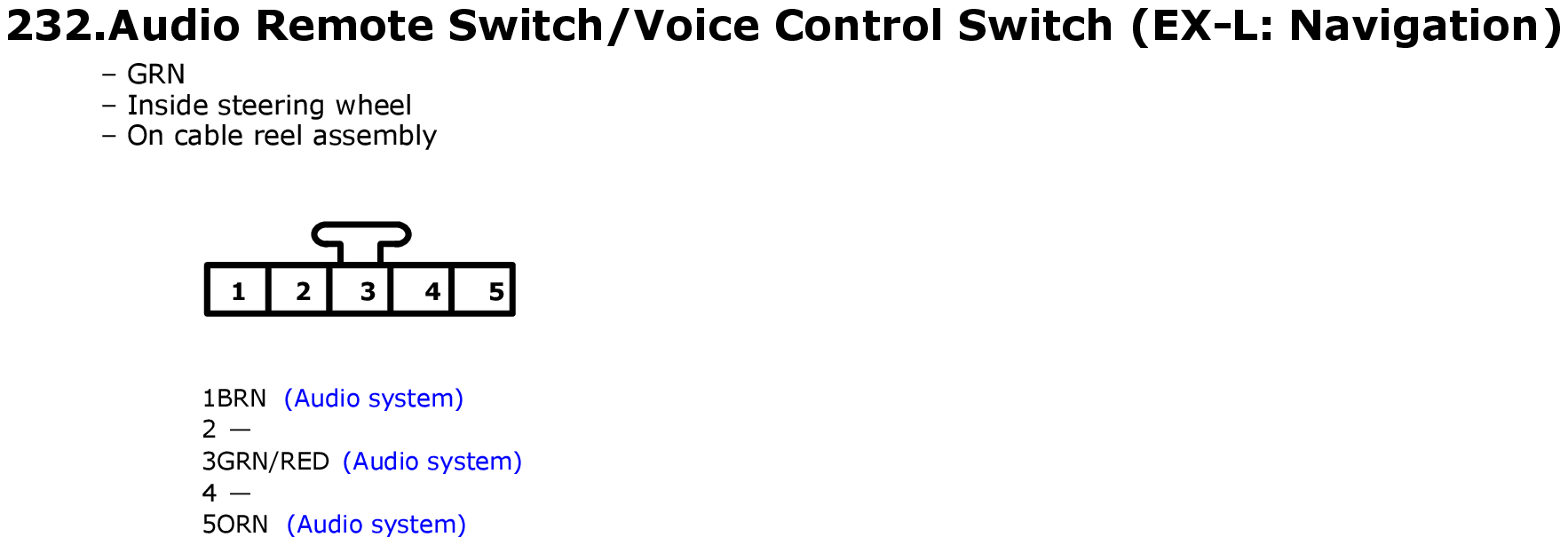

Fig 1: Audio Remote Switch/Voice Control Switch (EX-L: Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

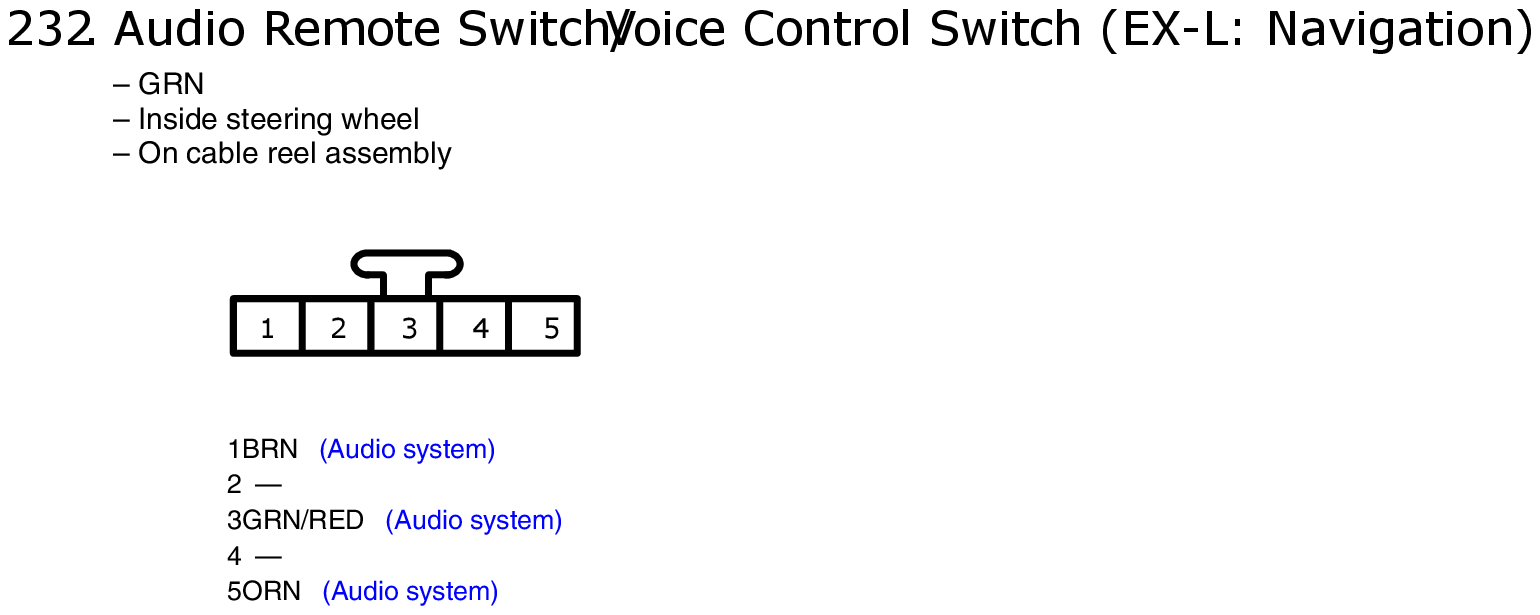

Fig 1: Audio Remote Switch/Voice Control Switch (EX-L: Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
